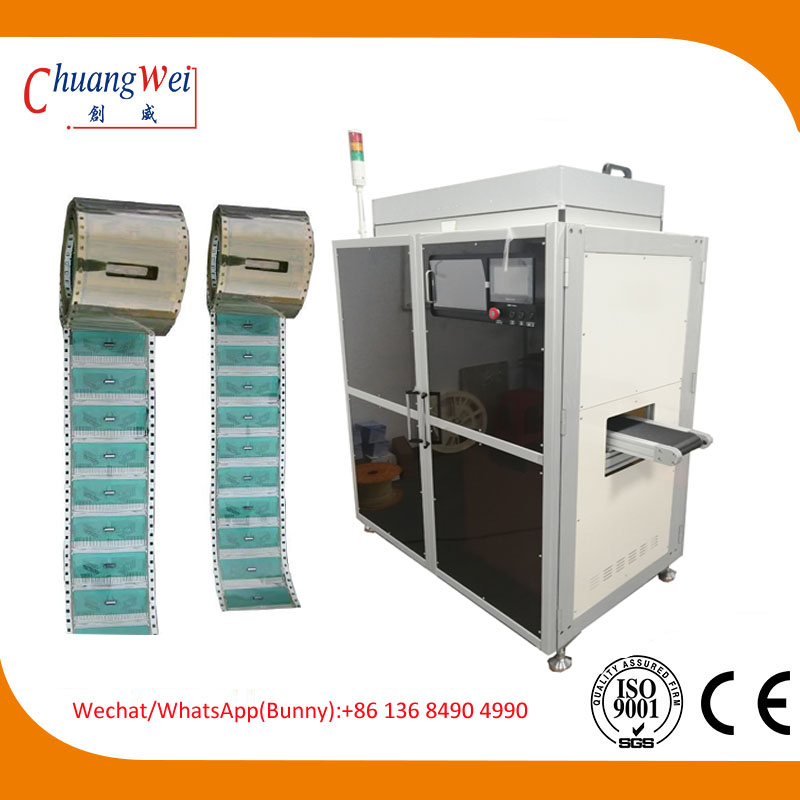

Auto COF Punching Machine,COF TAB Cutter Equipment introduction:

1. Equipment name: automatic COF slitting machine;

2. Equipment function: This equipment is a fully automatic COF punching machine, which punches the COF from the coil and sends a single COF to the equipment outside the equipment. The conveyor, punching and other actions are automatically completed by the equipment;

3. Applicable products of the equipment: This equipment is suitable for mobile phones, TVs, tablets, wearables and other situations where COF materials are used.

2.Parameter

Item	Project	Parameter	Remark
1.	Punching die	Customized with customer’s application
2.	Out method	Off-line: discharging from the assembly line,Online: Mechanical platform discharge	optional
3.	Machine size	Depth:980mm, width :1400+270(belt)mm,Height: 1680*55(FFU+Three-color light)mm
4.	Weight	460KG
5.	Machine color	The surface of the frame is orange and white, and other parts are chrome-plated or oxidized
6.	Work Environment	Clean, dust-free clean room
7.	Equipment delivery status	The surface of the equipment is clean and dust-free, and warning signs should be affixed in dangerous places such as thermal heads.

3.Feature:

Item	Project	Parameter	Remark
1.	Machine type	Single mode single
2.	Precision	X：≦±0.02mm， Y：≦±0.03 mm
3.	Production capacity	800PCS/H
4.	Suitable tape width	Standard :70mm	customized with your application
5.	Equipment failure rate	≤2％	Except for objective factors such as man-made and natural factors
6.	Rate of qualified products	≥98％	Man-made and poor incoming materials are not counted
7.	Cutting time	The new model is made, the adjustment time is about 25min The original model switch, the adjustment time is about 15min	Engineer proficiency varies
8.	Variety number	100PCS

4.Equipment process parameters and process flow:

Item	Project	Parameter	Remark
1	Cutting time	0.1 ~99.0S
2.	Belt travel time	0.1 ~99.0S
3.	Process flow	1) The device is powered on and reset is completed; 2) Install the material on the material rack, and install the material belt as required, and wind the protective film and waste material into the corresponding recycling wheel respectively, and ensure that the relative sensor is not on the upper and lower limits; 3) Manually adjust the position of the strip, confirm the target position on the system, and complete the first COF blanking, and finally measure the accuracy of the first COF. If it is not good, adjust the position, and then perform manual blanking and measurement accuracy. If OK, Go to the next step; 4) After the first COF punching is OK, enter the quantity to be punched. If the quantity is not entered, the equipment will always punch the complete COF; 5) Finally start the equipment, the equipment will automatically punch; 6) When the punching quantity reaches the set quantity, the equipment will stop automatically; 7) The personnel manually remove the COF from the assembly line manually, or place the connector COF tray.
4.	Loading Cof	One person loading and unloading at the same location
