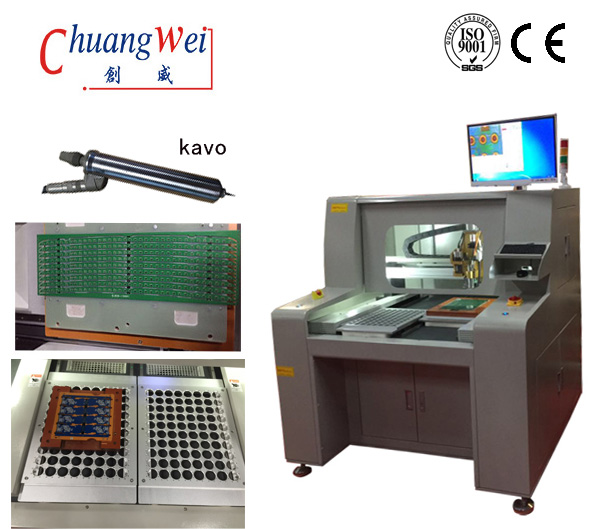

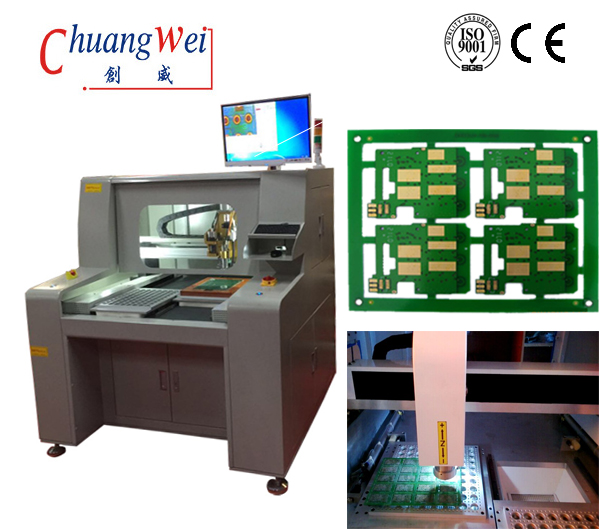

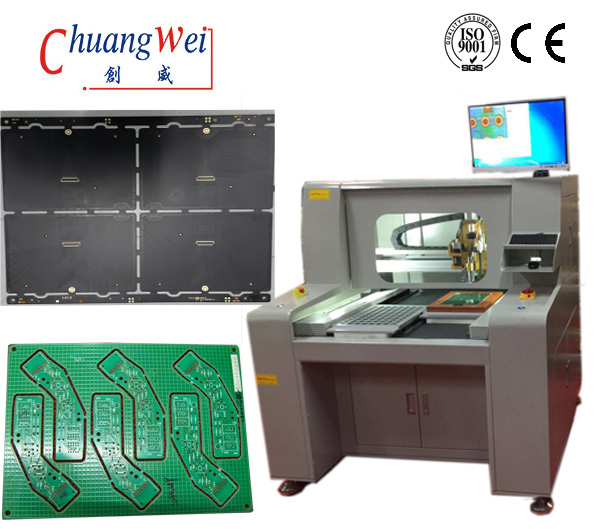

1. Two-slide PCB Separator
2. Low stress
3. Sharp cutting edge
4. Manul loading /unloading
5. High speed cutting by 4 axes control
6. Easy teaching with image processing
Description:
2-way Sliding Exchanger
This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.
Route Duplication
The user only needs to set two referent points to duplicate a same route in saving programming time.
Routing Bit Sectioning
The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.
Friendly GUI
Windows 7 system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.
Specification:
Model
CW-F04
Standard working area
320*320mm(Standard)
Power
220V, 4.2KW
Manipulator Repeatability
±0.02mm
Resolution
±0.01mm
Board Positioning
Dual workstation with nest fixture or pin fixture
Panel Location
Located by tooling holes or edges of PCB
Loading
Manual
Unloading
Manual
Panel Size
320*320mm(standard)
Panel Thickness
0.5-3.5mm
Spindle motor
0.5kW Morning Star Spindle
Dust filtration system
3KW Vacuum Cleaner
Vision system
High resolution CCD video camera
Programming
Vision assisted point to point manual teaching
Editing Function
Dry run vision assisted / test run mode
Machine weight
650kgs
Machine dimension
1350*1250*1450cm
Additional Information:
|
Payment Terms |
T/T, Paypal |
|
Minimum Order |
1 Set |
|
Lead Time / Delivery Time |
10 Day(s) |
|
Sample Available |
NO |
|
Delivery Details |
7-10 days after payment receipt |
|
FOB Port |
Shenzhen, |
|
Loading Info |
FOB Shenzhen via Sea/Air |
|
Packing Info |
plywood case |
|
Target Market(s) |
North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |

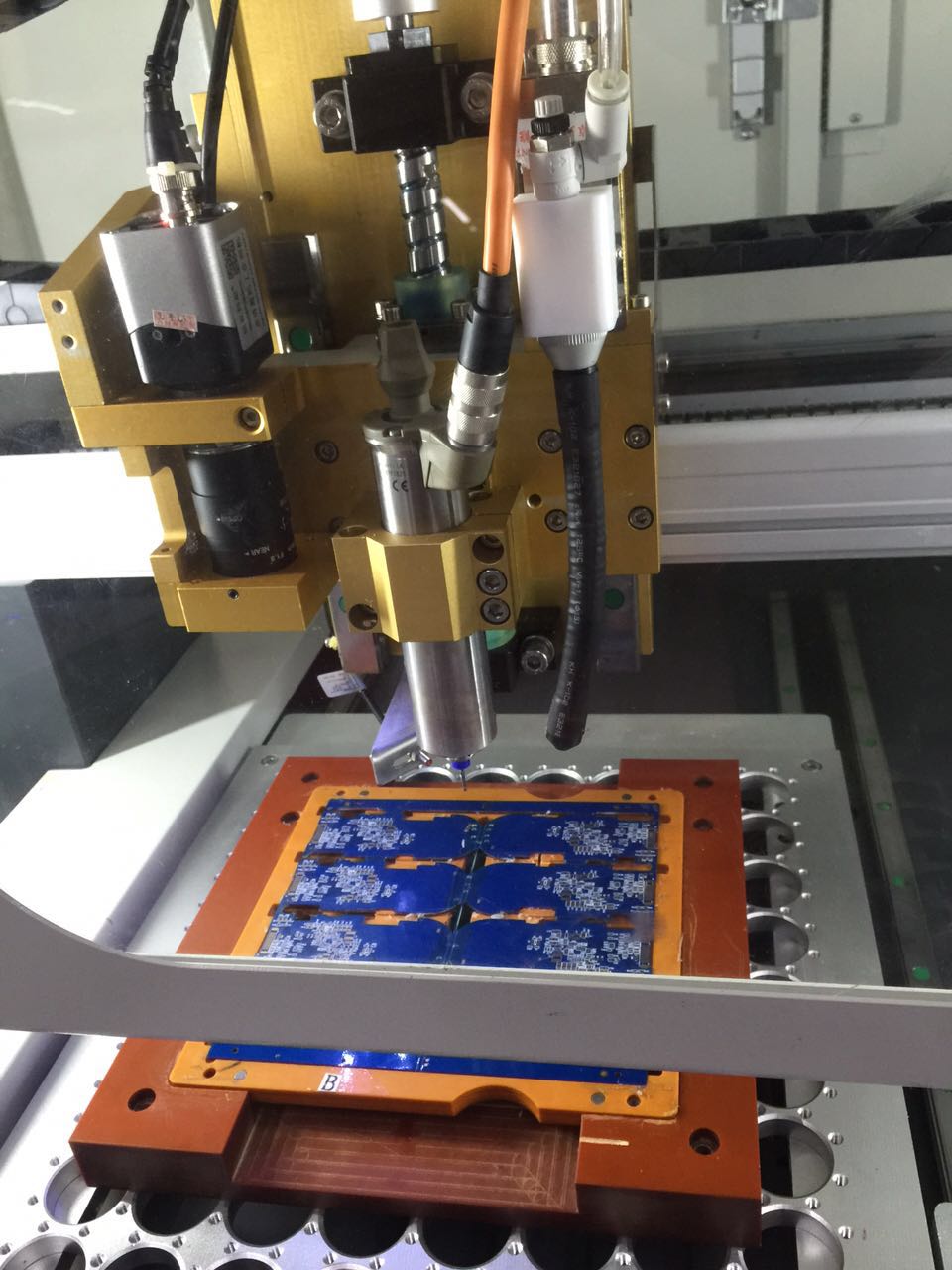

Routing Depaneling PCB - PCB Router with High Speed Cutting by 4 Axes Control,CW-F04 Sample Application:
Our advantage:
1. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
2. We can also customize the products to fulfill different requirements.
3. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for
Electronic Assembly Industry.
4. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time
is just 3 days.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6. Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your
reliable partner and will return to you with good products and good support.
7. Professional: We have been in this business for more than 10 years. We have a strong professional
team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes
10. Price: we always offer competitive prices and help our customers to cost down.
11. Quality: we do 100% inspection before the shipment.

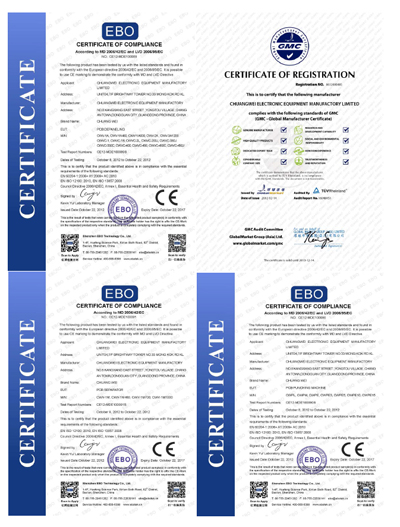

Routing Depaneling PCB - PCB Router with High Speed Cutting by 4 Axes Control,CW-F04 CE Certification:
