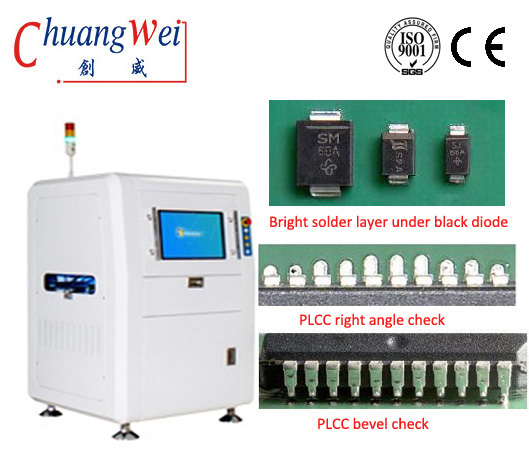

Missing-solder AOI Solder Paste Detection Method,CW-27X

Product description: Missing-solder AOI Solder Paste Detection Method,CW-27X
INQUIRY

1.Missing-solder AOI Solder Paste Detection Method,CW-27X Features:

a. 5Megapixels high speed industrial camera & telecentric lens,with high resolution can applied in high precision mounting quality inspection

b. The world’s first automatic lifting vision module,can deal with complex mixed mounting/plug-in circuit board

c. The camera can automatically identify the bar code on both side of the PCB and make the corresponding information storage,easy to save and trace the product information

d. The 27X designing with its flexible structure,can work as the final quality control station especially in large server or motherboard

2.Missing-solder AOI Solder Paste Detection Method,CW-27X:

CW-27X on the basis of traditional AOI increased the Z axis,can automatically adjust the focus by lifting the vision module,get the most clear image quality.can be used in the inspection of the SMT,wave soldering joint and very high plug-in components.

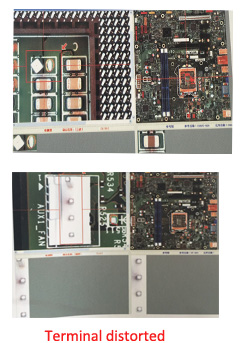

3.Automatic Optical Inspection Machine,CW-27X Test effect chart:

4.On-line Automatic Optical Inspection Machine,CW-27X Specifications：

Category	Item		Specification
Visual identity system	Inspection		Multiple algorithms synthetically such as WIDM,Color Image contrast technology,Color extracting technology,similarity two-value handing technology,OCR/OCV and so on
	Camera		Distal and high speed color camera,Resolution: 15um(20um,12um,10um for option)
	Lens		Industrial telecentric lens
	Lamp-house		Rings RGB LED Lamp-house
	Image Processing Speed		250ms
	Inspection Items		Missing,Shift,skewed,tombstone,billboard,overturned,reversed polarity,wrong parts,CPU SOCKET PIN inspection(Pin missing,PIN shift)
	Min Inspection element Distance		01005& 0.3mm pitch
Mechanical system	PCB Conveyor		Belt conveyor system(Chain conveyor for option),left to right(Optional right to left)PCB fixing:bottom-up,Automatic PCB loading and unloading,Adjustable clearance,conforming SMEMA standard,The conveyor’s height adjust range:900+20mm
	PCB size		6565mm-510460mm can make other size according to client’s demands
	PCB thickness		2 - 8mm
	PCB warp age		<2mm (fixture for correction of deformation)
	Component height		Top<50mm, Bottom<30mm (special requirements can be customized)
	X,Y Platform	Driver	AC Sever,camera moves in the directions of X/Y/Z
		Positioning accuracy	<10um
		Moving speed	700mm/s
		Z Axis	Height adjust between50-100mm,safety distance 50mm
			Identifiable component height:1mm-50mm
			Adjust method: Automatically
Software system	operating system		Microsoft, Windows7 X64
	Identification control system	Characteristic	Set template images real time,count data and error gate value automatically,Three marks correction input CAD date locate the templates automatically,the operator can combine algorithms according the requirement
		Operation interface	Graphical programming Chinese / English
		Offline Programming	Offline programming and Offline debugging
Network			NG adaptable,Check and correct PCBA defects at repair station
Control System	Computer		CPU: IntelI7,Memory:16G Hard disk:1TB
	Display output		23 inch LCD widescreen display
	Multiple machine control		The Operator can control multiple same machines in the control terminal
Others	Air supply		4 - 6 bar
	Mechanical dimension		115cm(L)120cm(W)159cm(H)
	Weight		680Kg
	Power supply		AC 220V10%,single phase 5A 50/60Hz,power consumption 1200W
	Working environment		Temperature 10-40ºC , humidity 30-80%RH
