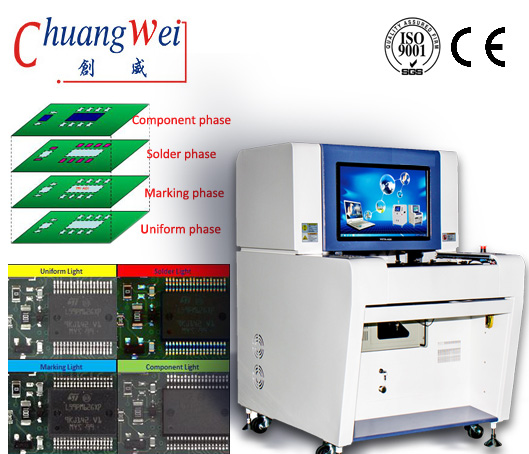

Automatic SMT Offline AOI Optical Inspection Machine,CW-486

Product description: Automatic SMT Offline AOI Optical Inspection Machine,CW-486
INQUIRY

Automatic SMT Offline AOI Optical Inspection Machine,CW-486 Description:

Easy to operate and multiple-function AOI

Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality,

check component defects before reflow soldering, check PCBA quality after reflow soldering,

and DIP after wave soldering

1.Super high-pixels photography system ensures lowest lowest inspection judgment

Simple Weigh-win imaging Difference Model technology (WIDM) can lessen the study time while programming;

Unique inspection shift of 2 sides of board (components top and bottom),auto software origin emendation;

Applied for mark point emendation for duplicated boards &bar code database and PCB bad mark recognition;

Creative OCR (Optical Character Recognition) function extends the area of AOI algorithm improves the judgment of misplacement;

Share data among AOI internal network.

2.Intelligent color analysis technology

Using color extract and Analysis Technology (CPAT) can extract the object shape more correctly and gain highly precision of the inspection;

The application of multiple-marks and multiple-boards can be more adapted the demands of the production tests and give you many scene applications.

3.Bar code Reading

More simplified weight debugging function, so that programming without learning or less learning;

Original positive and negative automatic identification, as well as automatic origin correction, opened a new era of off-line AOI automation;

4.Components free combination

Many algorithms applications and combination with enhance the pass rate reduce the rate of misjudging greatly;

The components can combined freely make the template replace more easy and programming more quickly.

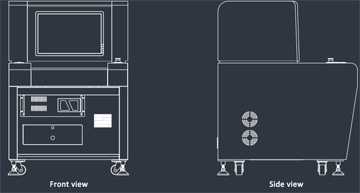

5.Dimensions of the machine

Automatic SMT Offline AOI Optical Inspection Machine,CW-486 Technical Parameters:

Category	Item		Specification
Recognition System	Inspection		using multiple algorithms synthetically such as WIDM,Color Image contrast technology,Color extracting technology,similarity,binarization algorithm,OCR/OCV,shot test and so on.
	Camera		High-speed color camera: Resolution 12 um
	Lamp-house		Ring RGB LED lamp-house
	Image Processing Speed	0201 Chip	<7ms
		Per-image time	<120ms
	Inspection items	Paste Printing defects	Misaligned, overflow, insufficient, pasting open, stain
		Component defects	Missing,misaligned,skewed,tombstone, billboard,overturned,reversed polarity,wrong, damaged
		Solder defects	Overflow, insufficient, short solder, stain
	Anti static measures		Anti static electric outlet, anti static wreath
Mechanism System	PCB Size		2525mm - 330480mm,can make bigger size according to clients’ demands
	PCB Thickness		0.5mm-2.5mm
	PCB Warp Tolerance		<2mm
	Component Clearance		Top≤25mm，Bottom≤50mm
	Minimum Space Parts		0201 Chip
	X Y Platform	Driver	AC Server
		Orientation	<15μm
Soft System	Operation system		Microsoft Windows XP Professional
	Controlling & Recognizing	Characteristics	Comprehensive application of various algorithms; Components standards set specific and targeted, low false positive; support the camera bar code recognition, automatic jump shield test
		Operation	Graphic programming,take along with chip library and get a inspection frame according with chip shape,accurate position,micron adjust, and easy programming
	Mark	Mark Numbers	2marks can be chosen,panelize multiple-mark function
		Recognizing Speed	0.5 S/PCS
Controlling	Computer		Industrial computer CPU:Intel dual-core,MEMORY:2G,HARDDISK:500G
	Display		19 inch TFT(Option 22inch TFT)
others	Machine Dimensions		860mm960mm1250mm
	Weight		450Kg
	Power Supply		AC220V±10%, single phase 5A 50/60HZ, power consumption 600W, along with a unbreak power supply of UPS
