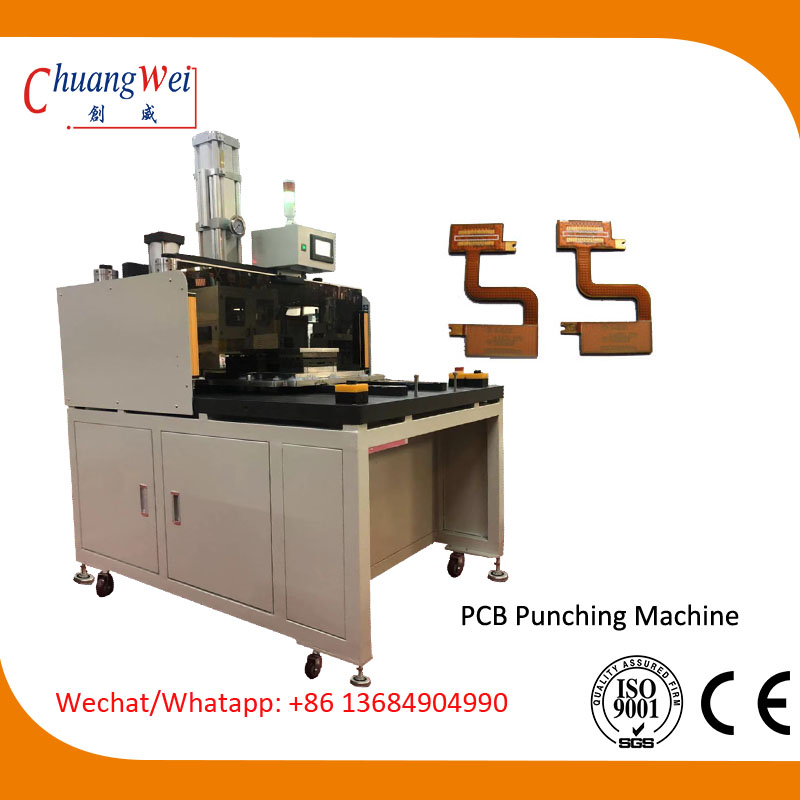

Automatic PCB Punching Machine ,PCBA Punch Equipment Parameter:

Automatic PCB Punching Machine ,PCBA Punch Equipment Features:

1 This punching machine is specially designed for cutting and punching of all kinds of panels with molds, such as FPC and PCB hard board. It can avoid all the problems caused by manual pulling, folding, pliers, shearing, and so on. Flash and other undesirable phenomena.

2 According to different products or die toolings, arbitrarily adjust the punching speed, punching pressure and punching time.

3 Easy to replace die toolings, touch screen has die tooling replacement password to ensure safety production.

4 Vertical movement of lower mold for easy loading and unloading panel

5 Using two-hand buttons synchronization (1 second) to control, to eliminate human security risks

6 Use clean gas, no oil, low power, energy saving, easy maintenance, speed and output stability.

7 Automatic or manual mode is optional, computer counting and program combination, the same day output and total output record at the same time, convenient statistics, and the quasi-quasi-and efficient.(Automatic:this function is only used for testing machine, not used for production)

8 Pneumatic technology, an air compressor can work for more than one punch, normal use and post-maintenance costs lower than other types of punching machine.

9 Has stop working and alarm function due to air pressure issue, to ensure adequate power& quality.

Automatic PCB Punching Machine ,PCBA Punch Equipment Maintenance:

1. The die cutting die is cleaned regularly every day,and keep the machine clean.

2. The screw guide rail is regularly lubricated and maintained every month.

3. The gas tank inside the machine is drained regularly every month.

4. When the machine is abnormal, press the emergency stop switch until the abnormality is removed before starting the work normally.

5.Check the screws regularly for looseness. Lock the screws according to the marked position.
