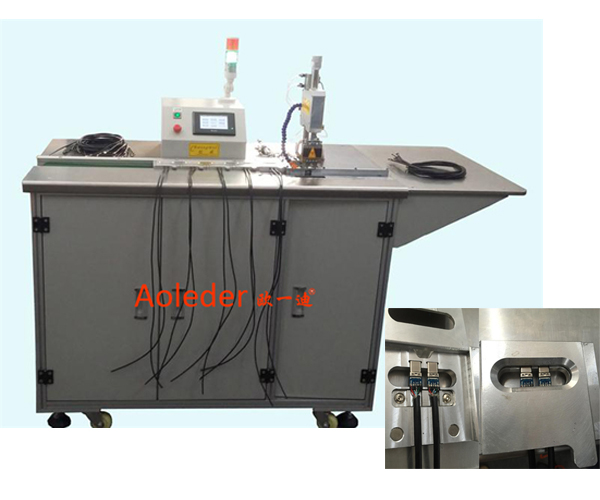

Wire Hot Bar Hot Selling Soldering Machine,CWPDY2IN Features:
1.On~line conveyor loading and landing automatically
2.Has alarm system, manual test & adjustment is available
3.Double side soldering at the same time
4.Advanced temp. controlling system, high precision temp & soldering time controlling
5.Stable temp. profit, high frequency inverter frequency, short power cycle.
6.LCD display for soldering temp.
7.Closed loop PID temperature control with visible LED display.
8.Three section of heating setting, the temperature rises quickly and steadily
9.20 groups of programs can be stored, using RRPROM to prevent data from missing.
Wire Hot Bar Hot Selling Soldering Machine,CWPDY2IN Specification:
Model: CWPDY2IN
Power: 6*2 KW
Power Supply: 220V 50Hz
Inverter frequency: 4*2 KHz
Load sustained rate: 20%
Heating up and cooling down: Yes
Temp. range: 50-600℃
Cooling mode: Air
Max product size: 80mm
Pressure range: 10-50N
Temp. Control Precision: ±3%
Thermocouple: E or K optional
Thermode head size: 5~50mm
Weight: 200kgs
Dimension: 1600*700*1300mm
