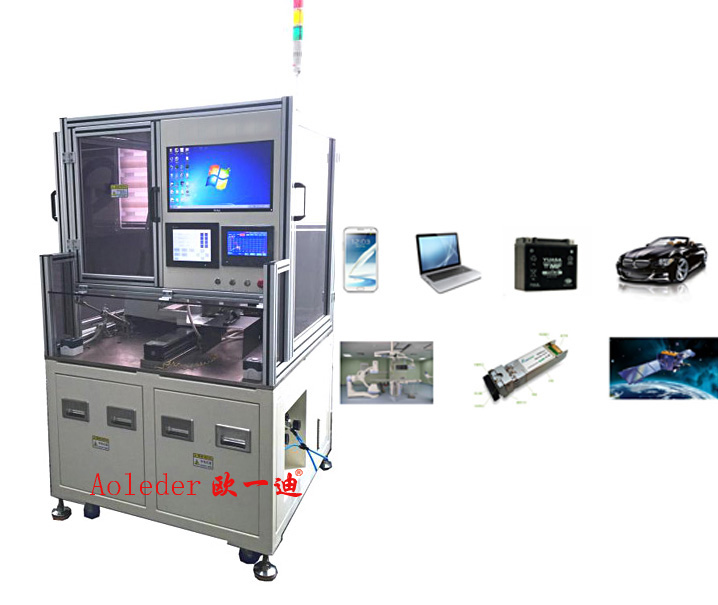

Scanner Welding in Automotive,Soldering for PCB,CWLS-P

Scanner Welding in Automotive,Soldering for PCB,CWLS-P

  • Product description: Scanner Welding in Automotive,Soldering for PCB,CWLS-P
  • INQUIRY

Scanner Welding in Automotive,Soldering for PCB,CWLS-P Product Description:

CCD automatic scanning after the starting point after the puzzle solder paste, laser welding using the disposable whole mirror; solder supply system: the structure of 4 axis horizontal joint manipulator + platform; automatic dispensing system with injection valve (optional) Musashi paste; automatic mount prefabricated welding sheet system: patch mechanism principle (optional).

Product features:

1. equipped with four axis solder supply system, precise and flexible;

2.coaxial temperature measuring system, output real-time temperature control curve;

3.for FBC and PCB welding, SMD non temperature components, heat sensitive welding advantages, high efficiency, good performance.

Product Parameters:

Entry Name

Technical Parameters

Machine Model

Power Supply

200V 50HZ

Total Power

600W-1.5KW(configuration selection)

Laser Parameters

10-150W optional

Wave Length

808,980,1064,1070 Optional

Control Mode

Microcomputer+PC Image Processing

Visual Positioning System

±0.003mm

Machining Range

300*300 can be processed more than 0.15 pitch

Tin Plating Mode

Prefabricated tin,Point solder paste,Optional

Size

L1000*W1000*H1700mm

Application:

Communications, military, aerospace, automotive electronics, medical equipment, mobile phones and so on.
