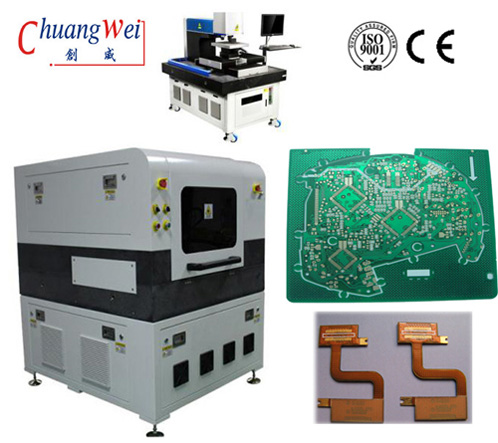

Laser PCBA Depanelizer Machine & Popular Pcb Separator-Buy Cheap Pcb Separator lots from China,CWVC-5L

Product description: Laser PCBA Depanelizer Machine & Popular Pcb Separator-Buy Cheap Pcb Separator lots from China,CWVC-5L
INQUIRY

Laser PCBA Depanelizer Machine & Popular Pcb Separator-Buy Cheap Pcb Separator lots from China,CWVC-5L Specification:

Laser class	1
Max. working area (X x Y x Z)	300 mm x 300 mm x 11 mm
Max. recognition area (X x Y)	300 mm x 300 mm
Max. material size (X x Y)	350 mm x 350 mm
Data input formats	Gerber, X-Gerber, DXF, HPGL,
Max. structuring speed	Depends on application
Positioning accuracy	± 25 μm (1 Mil)
Diameter of focused laser beam	20 μm (0.8 Mil)
Laser wavelength	355 nm
System dimensions (W x H x D)	1000mm940mm 1520 mm
Weight	~ 450 kg (990 lbs)
Power supply	230 VAC, 50-60 Hz, 3 kVA
Cooling	Air-cooled (internal water-air cooling)
Ambient temperature	22 °C ± 2 °C @ ± 25 μm / 22 °C ± 6 °C @ ± 50 μm (71.6 °F ± 3.6 °F @ 1 Mil / 71.6 °F ± 10.8 °F @ 2 Mil)
Humidity	< 60 % (non-condensing)
Required accessoires	Exhaust unit

Laser PCBA Depanelizer Machine & Popular Pcb Separator-Buy Cheap Pcb Separator lots from China Features:
Neat and smooth edge, no burr or overflow;
More quick and easy, shorten the delivery time;
More quick and easy, shorten the delivery time
High quality ,no distortion,surface clean& uniformity;
Gathering the CNC tech,laser tech,software tech…High accuracy,High speed;

Laser PCBA Depanelizer Machine & Popular Pcb Separator-Buy Cheap Pcb Separator lots from China Advantages:

1.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

2.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

3.Reduce energy consumption, Cost savings.

Working principle :

humidity sensor ( humidity and temperature signal ) → Microcomputer ( CPU Central Processing Unit ) → Heaters ( PTC heating module polymer material heating ) → Smart shape memory alloy ( alloy shape with temperature change ) → Balance spring ( general balance spring with alloy )

Description:

PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years. Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods. However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts. Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage. This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.

Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods. Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry. A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.

Laser PCB Depaneling Machine Application:

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.

Why us

1.Engineers available to service machinery oversea.	Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2.Mature technique & forerunner to process makes high quality machinery.	As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service. pcb router machine	All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be easy reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories. b router machine	Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Our mission:	Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:	PCB industry to become the world's leading solution providers PCB separator. pcb router machine

Additional Information:

Payment Terms	T/T, Paypal
Minimum Order	1 Set
Lead Time / Delivery Time	10 Day(s)
Sample Available	NO
Delivery Details	7-10 days after payment receipt
FOB Port	Shenzhen,
Loading Info	FOB Shenzhen via Sea/Air
Packing Info	plywood case
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
