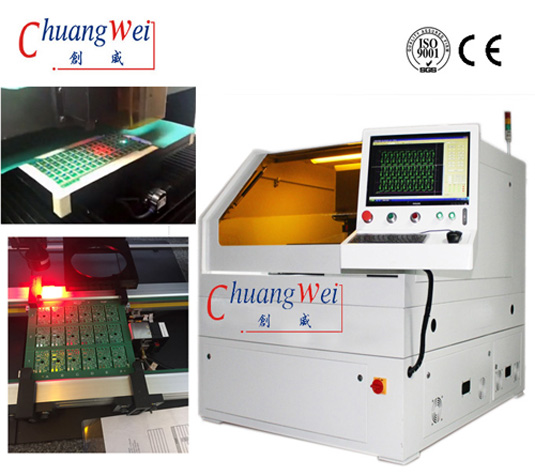

China Top Quality PCB Depaneling Machine & PCB Separator Supplier,CWVC-5S

Product description: China Top Quality PCB Depaneling Machine & PCB Separator Supplier,CWVC-5S
INQUIRY

China Top Quality PCB Depaneling Machine & PCB Separator Supplier Description:

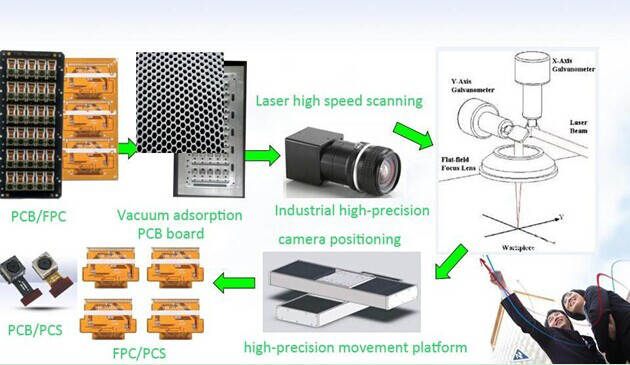

PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years. Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods. However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts. Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage. This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.

Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods. Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry. A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.

China Top Quality PCB Depaneling Machine & PCB Separator Supplier Features:

1. Neat and smooth edge, no burr or overflow;

2. More quick and easy, shorten the delivery time;

4. High quality ,no distortion,surface clean& uniformity;

5. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed.

China Top Quality PCB Depaneling Machine & PCB Separator Supplier Specification:

Laser	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength	355nm
Laser Power	10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor	±2μm
Repetition Precision of Worktable of Linear Motor	±1μm
Effective Working Field	460mmX460mm(Customizable)
Laser Scanning Speed	2500mm/s (max)
Galvanometer Working Field Per One Process	40mmх40mm

Challenges of Depaneling using Routing/Die Cutting/Dicing Saws

· Damages and fractures to substrates and circuits due to mechanical stress

· Damages to PCB due to accumulated debris

· Constant need for new bits, custom dies, and blades

· Lack of versatility – each new application requires ordering of custom tools, blades, and dies

· Not good for high precision, multi-dimensional or complicated cuts

· Not useful PCB depaneling/singulation smaller boards

Lasers, on the other hand, are gaining control of the PCB depaneling/singulation market due to higher precision, lower stress on the parts, and higher throughput. Laser depaneling can be applied to a variety of applications with a simple change in settings. There is no bit or blade sharpening, lead time reordering dies and parts, or cracked/broken edges due to torque on the substrate. Application of lasers in PCB depaneling is dynamic and a non-contact process.

Laser Source:
