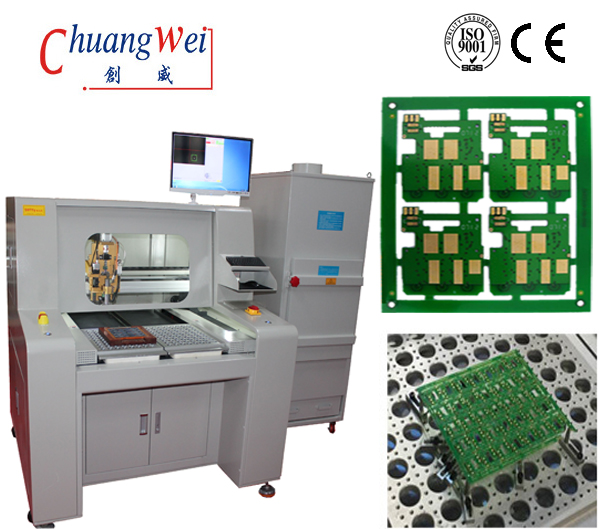

Automatic Cutting Machine‎ - Depaneling Printed Circuit Fabrication Tools,CW-F04

Automatic Cutting Machine‎ - Depaneling Printed Circuit Fabrication Tools,CW-F04

  • Product description: Automatic Cutting Machine‎ - Depaneling Printed Circuit Fabrication Tools,CW-F04
  • INQUIRY

Automatic Cutting Machine‎ - Depaneling Printed Circuit Fabrication Tools,CW-F04 Product Description:

PCB Size:

450*350( Any Size Customize )

Spindle:

KAVO

Power:

220/110V

Vacuum Cleaner:

3.5KW

Working Table:

2

Name:

PCB Router

Automatic Cutting Machine‎ - Depaneling Printed Circuit Fabrication Tools Specification:

Standard working area

320*320mm

Power

220V, 4.2KW

Manipulator Repeatability

±0.02mm

Resolution

±0.01mm

Board Positioning

Dual workstation with nest fixture or pin fixture

Panel Location

Located by tooling holes or edges of PCB

Loading

Manual

Unloading

Manual

Panel Size

320*320mm(standard)

Panel Thickness

0.5-3.5mm

Spindle motor

KAVO Spindle

Tool Change

Manual

Dust filtration system

3KW Vacuum Cleaner

Vision system

High resolution CCD video camera

Programming

Vision assisted point to point manual teaching

Editing Function

Dry run vision assisted / test run mode

Machine weight

500kgs

Machine dimension

113*140*108cm

Our advantage:

1 . We supply a wide range of products and provide one-stop service for Electronic Assembly Industry .

2 . We can also customize the products to fulfill different requirements .
3 . We are a leading manufacturer of ESD Products, Cleanroom Products , Tools & Instruments for Electronic Assembly Industry .
4 . We keep a lot of stock for regular products and we can support small orders . Usually , our lead time is just 3 days .
5 . Credibility: We are the 6th year Alibaba Gold Supplier . Our customers are located all over the world .
6 . Gratitude : We cherish and feel grateful to every customer for the business you give us . We are your reliable partner and will return to you with good products and good support .
7 . Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences .
8 . We keep doing new product development . Our goal is to enhance our competitive capacity constantly.
9 . Promise : we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes
10 . Price : we always offer competitive prices and help our customers to cost down .
11 . Quality : we do 100% inspection before the shipment .

Automatic Cutting Machine‎ - Depaneling Printed Circuit Fabrication Tools Sample:
