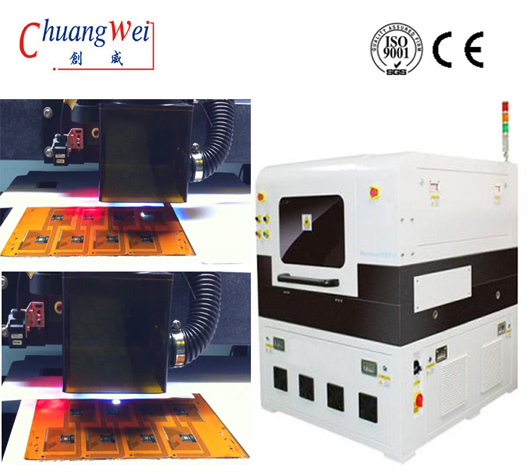

FPC Laser Depaneling for Fpc Cutting,CWVC-5L

FPC Laser Depaneling for Fpc Cutting,CWVC-5L

  • Product description: FPC Laser Depaneling for Fpc Cutting,CWVC-5L
  • INQUIRY

FPC Laser Depaneling for Fpc Cutting,CWVC-5L Features:

1. Neat and smooth edge, no burr or overflow

2. More quick and easy, shorten the delivery time;

4. High quality ,no distortion,surface clean& uniformity;

5. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed

Laser PCB Cutting with UV Laser Specification:

Laser class

1

Max. working area (X x Y x Z)

300 mm x 300 mm x 11 mm

Max. recognition area (X x Y)

300 mm x 300 mm

Max. material size (X x Y)

350 mm x 350 mm

Data input formats

Gerber, X-Gerber, DXF, HPGL,

Max. structuring speed

Depends on application

Positioning accuracy

± 25 μm (1 Mil)

Diameter of focused laser beam

20 μm (0.8 Mil)

Laser wavelength

355 nm

System dimensions (W x H x D)

1000mm*940mm
*1520 mm

Weight

~ 450 kg (990 lbs)

Power supply

230 VAC, 50-60 Hz, 3 kVA

Cooling

Air-cooled (internal water-air cooling)

Ambient temperature

22 °C ± 2 °C @ ± 25 μm / 22 °C ± 6 °C @ ± 50 μm
(71.6 °F ± 3.6 °F @ 1 Mil / 71.6 °F ± 10.8 °F @ 2 Mil)

Humidity

< 60 % (non-condensing)

Required accessoires

Exhaust unit

Laser Flex PCB Depanelization with UV Laser Fpc Separator of Advantages:

1.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

2.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

3.Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance

A Video of Flexiable Circuit Board with UV Laser Cutting FPC Sample:
