Serial number

name

specification

Remarks

1

Applicable to PCB size

maximum 450mm(L) ×450mm(W) × 180mm(H)

2

Cleaning fluid capacity

60L（maximum）

3

Filter capacity

15L（maximum）

4

Best liquid usage

About 45~50L

5

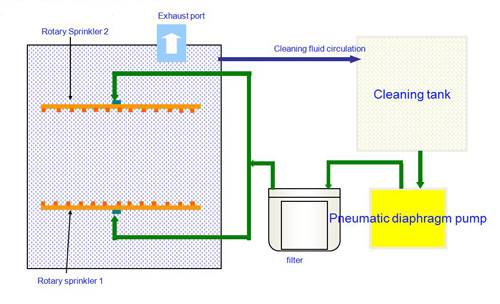

Cleaning method

360°Up and down, rotary jet cleaning

6

Dry way

Compressed air dry

7

Recommended cleaning time

2-8 mins

8

Recommended drying time

3-5 mins

Depending on the cleaning solution

9

Filter mode

Standard 1um wound filter

10

Air supply

0.5Mpa~ 0.7Mpa

11

Air consumption

800-1000L/min

12

net weight

238Kg

13

Outlet size

Φ125mm

14

dimension

1100(L) ×900mm(W) ×1500mm(H)
