Stencil Cleaning Machine Spray Ultrasonic Drying Cleaning Equipment Cleaner,CW-6100

Product description: Stencil Cleaning Machine Spray Ultrasonic Drying Cleaning Equipment Cleaner,CW-6100
INQUIRY

Stencil Cleaning Machine Spray Ultrasonic Drying Cleaning Equipment Cleaner,CW-6100–Specifications：

Process flow	Put board——Pure water pre-wash——Pure water cleaning——second pure water cleaning——final spray——Wind cut and dry——spare wind cut and dry——drying
Dimensions	4350（L）X1530（W)X1620mm(H)
Capacity	basis：according to pcb board size 600mmX100mm, 1 "plate spacing, 0.3 ~ 0.4 m / min working speed
Capacity	Yield：about 25m / hour（This production is for reference only, subject to practice）
Working size	maximum：600mm(W)X100mm(H) L=∞
	Minimal：60mmX60mm（Need fixture fixed）
	thickness：0.1—4mm
Working speed	0.1—1.5m/min adjustable；suggested transfer to 0.3—0.4m/min
Conveying surface height	900±50mm
Conveying surface width	600mm
The direction of board	Left into right out （View from the front window of the unit）
Displacement	About 12M³/Min（Clean the ventilation volume of the equipment）
Control	Using notebook + PLC control
net weight	About 1500KG
Power requirements	AC380 3P 50Hz 70KW 95A（running current 80A)

Stencil Cleaning Machine Spray Ultrasonic Drying Cleaning Equipment Cleaner,CW-6100 Cleaning Stage ：

1、 Filled with DI water automatically

2、 DI water overflows to chemical isolation section

3、 Immersed SUS High Efficiency Heater: Turns on for 15 minutes to heat up quickly

4、 PID temperature control system: temperature control accuracy ± 1 ℃, with temperature compensation control system
5、 Up and down pressure regulation control, before and after the pressure gauge display

6、 Spray module easy to remove the spray bar (SUS nozzle): spray vertical angle adjustable, quick disassembly and maintenance

7、 No large area of the water jet device

8、 High performance 10 HP centrifugal

pump stainless steel pump
9、 Quick Release Stainless Steel High

Pressure Piping System
10、 Removable filter
11、 Separate drain valve

12、 Redundant low level protection,

high alarm function

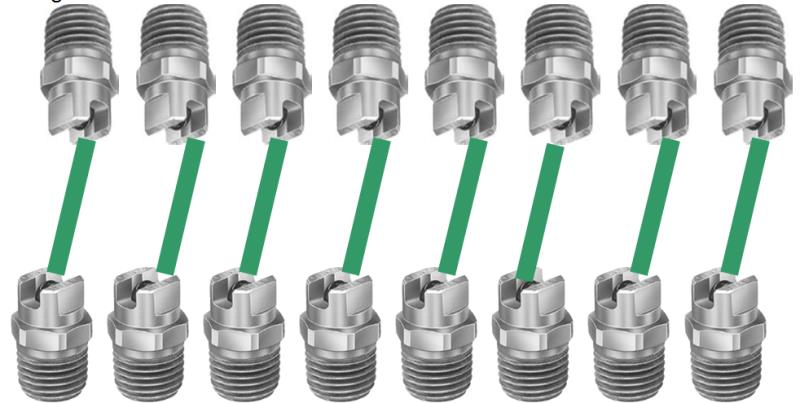

13、 Dislocation Arrangement nozzles

eliminate blind spots

PCBA On-line Cleaning Machine,CW-6100 Features ：

1、 Suitable for high-volume cleaning, online water purification, drying all the processes;

2、 Excellent cleaning effect, effective removal of water-soluble flux, no-clean flux and other organic and inorganic pollutants；
