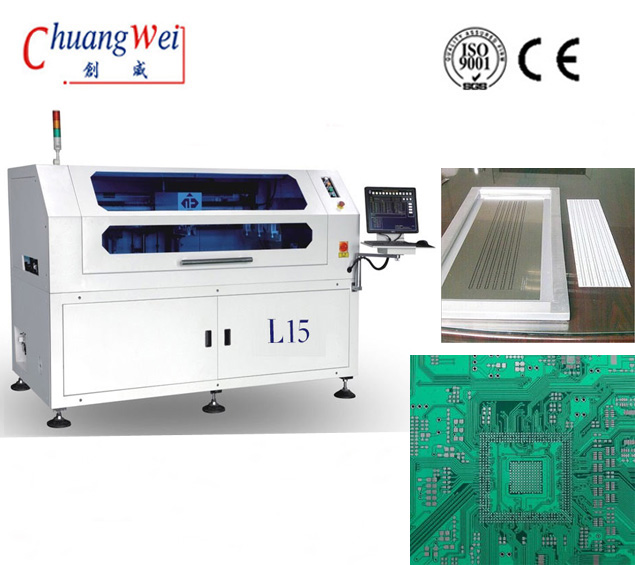

1.Solder Paste Printing Equipments,Solder Paste Pcb with Stenciling,CW-15 Specifications:

2.PCB Stencils Printing,Printed Circuit Board Stencils Printers,CW-L15 Features:

a) Wide compatibility for PCB dimensions from 80mm x50mm to 1500mm x 350mm for different thickness of PCB

b) High printing resolution

1. High positional accuracy, repeated positioning accuracy ±0.015mm; printing accuracy 0.03mm.

2. Support glue printing

c) Automatic control improves production efficiency, quality control and saves production cost:

1. Automatic steel mesh positioning

2. Automatic PCB alignment

3.Automatic adjustment of squeegee pressure

4.Automatic printing

5.Automatic stencil cleaning (dry-type, wet-type and vacuum-type)

d) Adopt company independently developed suspended print head with programmable pressure automatic adjustment system by air cylinder. Support on-line real time pressure feedback and automatic squeegeepressure balancing. Accurate pressure control ensures perfect forming effect of solder paste.

e) Programmable motor controls the squeegeeseparation speed and stroke from stencil, to realize multi-method demold.

f) Multi-functional PCB fixed positioning system, convenient and accurate PCB positioning.

g) Upward and downward visual positioning.

h) Built-in image processing system

i) Support 2D,SPC functions

j) PCB thickness adjust by electronic table.

k) Printing translation drived by stright connecting screw rod of motor

3.Auto SMT Stencil Printer Solder Paste Printing Machine for PCB,CW-L15:

1.Scraper system

*Arch bridge hanging straight with scraper

*Programmable suspension self-adjusting stepper motor drive print head.

*Bilateral double-slider four-wheel-type structure to ensure that the scratch before and after the operation of the accuracy and smoothness.

*Designed for the different requirements of the front and rear scraper pressure and the stability of the lift, to prevent the solder paste leakage and the blade has a certain flexibility of the clamping design, scraper pressure, lifting speed, printing speed,printing range are software adjustable to provide customers with a variety of stripping methods to meet the different requirements of the PCB board, to provide customers with a good printing control platform.

*slide-type scraper system to improve operational stability and extend the services life;Fully closed ring scraper pressure feedback device, always monitor the size of the squeegee pressure,making the tin more full.

2.Steel mesh positioning system

*Size steel mesh universal,with good and wide applicability

*Using imported SMC cylinder as a steel mesh cylinder

3.Image and optical system

*X, Y-axis with a high degree of Japan Koda grinding screw, both ends of the Japaneses Mastushita motor drive

*The internal increase in polarizer, automatic and accurate grasp of different types of MARK points.

Up,down and coadal three-way light source

*Using the Japanese Toshiba industrial camera

4.PCB transport and positioning system

*Into the board direction of any choice, can be freely combined

*Special craft of the inner gear conveyor belt to prevent the card board

*Programmable transport speed control makes boarding more accurate

*The use of the clip and vacuum suction chamber, effective clamping PCB ensure that the PCB and steel mesh between the full smooth contact.

5.Cleaning system

*Spray type cleaning

*Dry, wet, vacuum-free combination

*Separate cleaning structures

*Circular cleaning rubber strip

*Cleaning fluid, and steel net cleaning paper amount controlled

6.Platform correction system

*UVW platform structure, high precision, large rigidity and compact structure

*Triaxial linkage, small volume, high precision

7.Base and rack system

*Solid forming

*Panasonic motor plus Japan original plant high precision ground wire rod

*High rigidity, high stability of left and right symmetrical frame structure

8.Electric circuit system

*Safe and concise circuit gas circuit layout

*The circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient

9.The operating system

*Easy to learn easy to use friendly operation interface, with good man-machine dialogue function

*The program file has teaching and navigation functions, and every step has a hint

*Switch between Chinese and English

*It has operation log, fault recording analysis and diagnosis

*Other functional options

*Automatic point glue function

*Automatic scanning function

*Automatic add tin function

*The whole line closed loop control

*Constant temperature and humidity function

*Steel mesh plugging function

*Other functions can be customized according to customer's actual demand
