CNC Machine for PCB CNC Router,Depaneling Router,CW-F01-S

Product description: CNC Machine for PCB CNC Router,Depaneling Router,CW-F01-S
INQUIRY

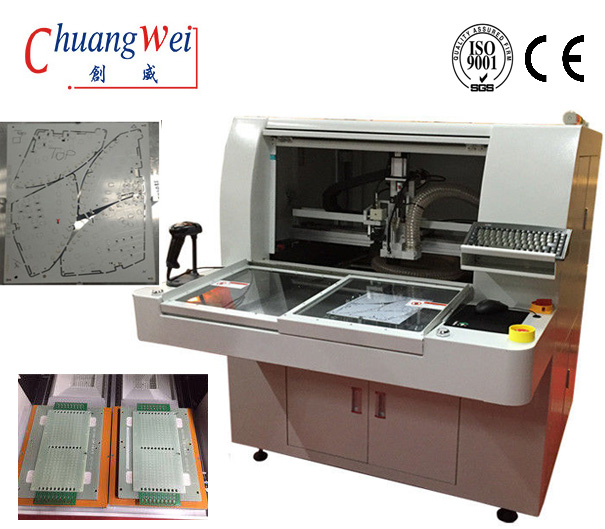

PCB Routing Machine - Printed Circuit Board Routing Machine,CW-F01-S Features:

1. Manual loading/unloading processing;

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value;

3. Friendly touch panel with 10X CCD camera to minimize the time of programming;

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy;

5. Auto router bit check to prevent the bit break incomplete cutting.

Sample for PCB Cutting with CNC PCB Router,CW-F01-S:

PCB Routing Equipment - PCB Depanelizer,CW-F01-S Detailed Product Description:

Warranty:	12 Month Free Of Charge	Temp• PCB Thickness:	0.5-3.0mm
• Cutting Area:	450*350mm	• Router Bit Diameter:	0.8 ~ 2.0 Mm
Bit Change:	Manual	Name:	PCB Router Separator

PCB Routing Equipment - PCB Depanelizer with 0.01mm Positioning Repeatability:

It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.

PCB Routing Machine - Printed Circuit Board Routing Machine,CW-F01-S Specification:

Model	CW-F01-S
Standard working area	320*320mm
Power	220V, 4.2KW
Manipulator Repeat ability	±0.02mm
Resolution	±0.01mm
Board Positioning	Dual workstation with nest fixture or pin fixture
Panel Location	Located by tooling holes or edges of PCB
Loading	Manual
Unloading	Manual
Panel Size	320*320mm(standard)
Panel Thickness	0.5-3.5mm
Spindle motor	KAVO Spindle
Tool Change	Manual
Dust filtration system	3KW Vacuum Cleaner
Vision system	High resolution CCD video camera
Programming	Vision assisted point to point manual teaching
Editing Function	Dry run vision assisted / test run mode
Machine weight	500kgs
Machine dimension	113140108cm
