  • Product description: CNC PCB Depaneling Router Machine / LED Trip Separator,CWVC-F03
  • INQUIRY

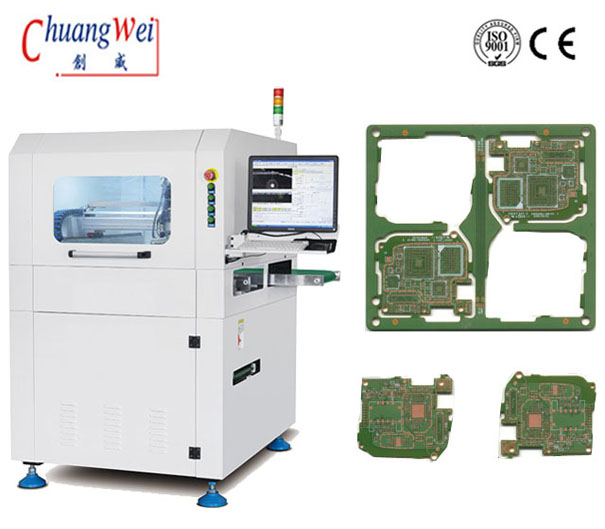

LED Trip Separator for CNC Router PCB Depanelization,CWVC-F03 Features:

1. Automatic tool change;

2. ESD monitoring;

3. Cutting stress feedback;

4. Automatic production mode;
5. Linkage between Spec statistic function and customer’s management system-ERP;

6. Can be equipped with explosion-proof function of vacuum cleaner.

CNC Router PCB DepanelizationSpecification:

Model

CWVC-F03

Machine Size

1000*1200*1533mm

Weight

Approx 1900kgs

Max PCB Size

350*350mm

PCB Thickness

0.4-6mm

Transmission height

900±50mm

Transmission direction

Left -> Right

Transmission speed

1500mm/s(max)/adjustable

Feeding plate type

Section-type transportation guide rail

Rail width adjustment

Automatic

Communication signal of upper and lower computers

SMEMA

PCB Positioning

Upper and lower guide rail clamping

Picking system

360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most

Cutting spindl/speed

Germany KAVO, 60,000rpm/min

Cooling type

Air compression

ESD monitoring

Yes

Automatic tool change

Yes

Cutting stress feedback

Yes

Break blade check

Yes

Cutting speed

1-200mm/s

Cutting accuracy

±0.5mm

Repeat positioning accuracy

±0.01mm

Coordinate moving speed

1000mm/s

Out plate type

ESD belt transportation/batch panel forwarding unit

Waste collection type

Out off the track

Procedure programming

GERBER drawing import/Editing program through visual system

Air supply

5-8kg/cm2

Power supply

AC380V±5%, 50/60Hz, 3KW

PCB Routing for PCB Separator Machine High Reliability Cutting System:

Germany KAVO high-speed principal axis with a top speed of 60000 rotates, featuring ESD static voltage monitoring and the functions of cutting stress feedback and automatic tool changing.

Super Vision System:

A precise machine visual system which consists of German imagining industrial camera, Moritex Lens and measurement-level light source; it supports all functions of machine calibration, compensation and positioning, featuring highest ability and anti-disturbance capacity.

High reliability PCB Gripper System:

A perfect solution without jig cutting; A PCB clamping size scope of 2mm, the pick up device can realize rapid loading/uploading, featuring high stability and low cost.

ESD ATPD Panel Forwarding System:

Panel forwarding solution 1: the cut PCB will be delivered by clamping system to belt transmission line, and then sent by ESD transmission line via machine into assembling line, or be picked up and loaded into product case by customized manipulator solution.

Panel forwarding solution 2: use batch panel forwarding unit ARM-1 dismantle belt transmission line frommachine, insert panel forwarding unit from behind the machine, and directly load the panel into blister box in ARM-1 via clamping system. The solution is featured By simplicity and convenience.
