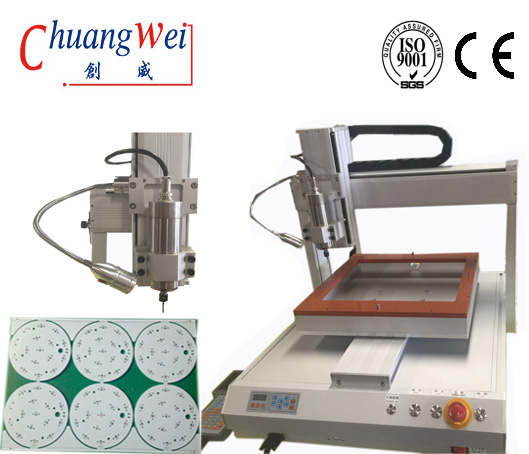

Pcb separator,Pcba Cutting-Pcb Router,CWD-3A
Pcb separator,Pcba Cutting-Pcb Router,CWD-3A Feature:
Desktop single bench cutting machine, Speeds of up to 100mm/s, positioning speed 500mm/s;
Cut continuously without interruption during loading and unloading;
High quality shaft system allows the system to quickly ramp, reduce the period of time, Improve productivity, maintaining high precision;
Use high-quality hardware to ensure high rigidity and high performance All screws are protected from dust and dirt from entering to improve the life and performance of the shaft;
Use high-quality hardware to ensure high rigidity and high performance.
Pcb separator,Pcba Cutting-Pcb Router,CWD-3A Specificaiton:
Motor Drive System |
Servo/Stepper Motor |
Spindle Speed |
50000r/s |
Cutting Performance |
500mm/s |
Drive System Repeat ability |
±0.02mm |
Cutting Speed |
Max 100mm/s(Depends on PCB Material and Cutting Quality) |
Resolution |
±0.01mm |
Configuration |
X Y Z 3 Axis |
Repeat Ability |
<0.1mm |
PCB Positioning |
Fixture |
Load and Unload Way |
Manually |
PCB thickness |
0.4mm-4mm |
Working Area |
320*320mm(Could be Customized made) |
Spindle Motor Speed |
50000r/m |
Spindle Motor Power |
0.5KW |
Spindle Motor Cooling |
Air-cooled |
Machine Dimension |
650*550*615mm |
Weight |
73KG |
Security Settings |
Emergency Stop Switch |
Vacuum Cleaner |
|
Phase |
1 |
Voltage |
220V |
Output |
2.2KW |
HZ |
50 |
Current |
9.7A |
Airfce |
263M³/h |
Barrel |
80L |
