Tape Sticking Machine for Sticking Tape on the PCB Panels

Tape Sticking Machine for Sticking Tape on the PCB Panels




1 Power switch: start the machine and enter standby mode
2 positive and negative switch: motor running direction
3 governor: speed adjustment and motor switch
4 operation mode: semi-automatic / fully automatic switching
5 Emergency stop switch: In case of emergency, the whole machine is powered off
6 double-sided rubber shaft cylinder: double-sided rubber sleeved, fixed
7 Roller: Fit light strip and double-sided tape, and have the function of importing and exporting
8 Roller height adjustment: adjust the height of the drum according to the thickness of the sheet
9 Foot switch: In semi-automatic mode, start work, release and stop
10 Upper die: jagged, positioning the double-sided tape and introducing double-sided tape
11 Upper mold fixing screw: After the positioning of the upper mold is completed, tightening is performed to prevent the upper mold from shifting.

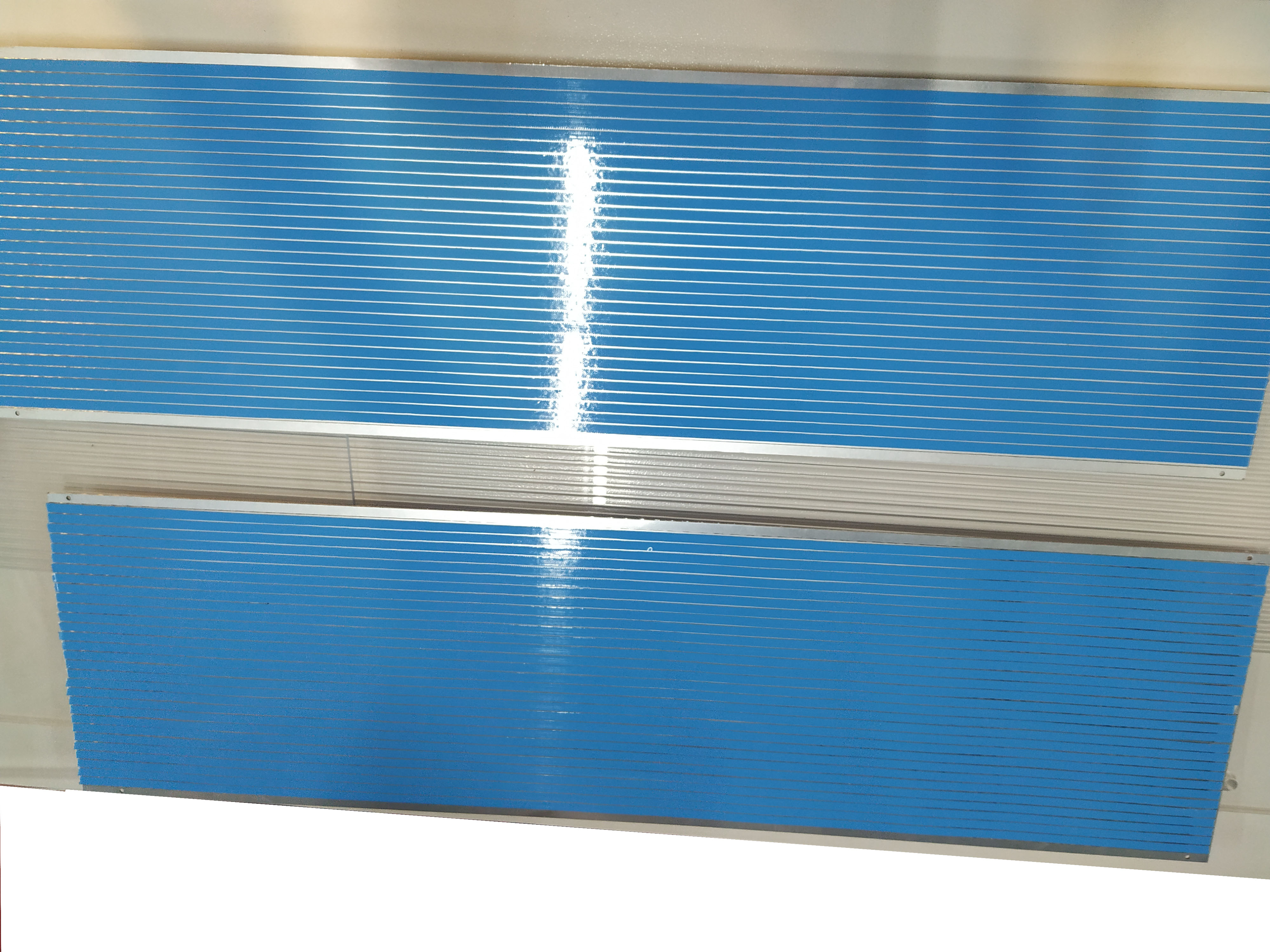

12 Lower die: Light bar positioning mold, slotted in the middle, the light bar can be tiled
13 Export board: After the light bar is attached, the machine is smoothly exported.
14 Motor motor: drive motor, connecting roller work
