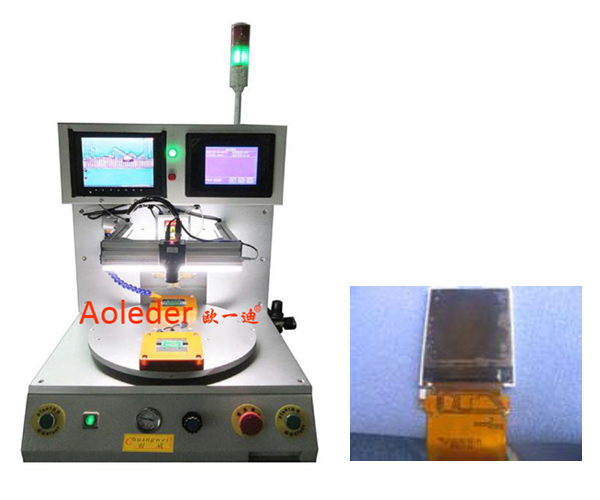

Microcomputer Control, High Accuracy and Stable,Hot-bar Bonding Machine,CWPC-3A
Product description: Microcomputer Control, High Accuracy and Stable,Hot-bar Bonding Machine,CWPC-3A
Microcomputer Control, High Accuracy and Stable,Hot-bar Bonding Machine,CWPC-3A Feature: 1. According to different products, optional temperature for your choice. 2. Unique material thermode head, ensure the average pressure 3. Has vacuum function, easier for adjustment and positioning. 4. NC temperature, clear and high precision 5. With digital pressure gauge, pressure range can be preset. 6. Microcomputer control, high accuracy and stable. 7. Programmable curve Including pre-heating and reflow soldering temperature. 8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding. 9. Precise PID control, phase angle replace pulse drive. 10. Less Libration, less noise, avoiding voltage fluctuate 11. Rotable dual fixtures with high working efficiency 12. Touch screen input data, simplify the operation. 13. Real-time display temperature curve and temperature data
Microcomputer Control, High Accuracy and Stable,Hot-bar Bonding Machine,CWPC-3A Technical parameters Machine size： 660×660×720mm Working area： Max 120*120mm Machine weight： 95Kg Working air pressure： 0.6-0.8Mpa Power supply： AC220V±10% 50HZ,2200W Temperature settings： Two Working environment：10~60℃，40%~95% Welding pressure： 1~20Kg Temperature settings： RT~500℃ tolerance ±5℃ Pressing time： 1~99.9s Welding precision： pitch 0.2mm Thermode head size： Max 60*3mm Fixture quantity: 2 Alignment mode： CCD + LCD Monitor Feeding mode： Manual Starting mode： Press two start button Heating mode： heating pulse rise time of 1~2 seconds Rotation Platform： Cylinder control tolerance<0.02mm
Microcomputer Control, High Accuracy and Stable,Hot-bar Bonding Machine,CWPC-3AApplication For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp.
Our Service: # 1 day delivery # 24 hours fast response # Largest manufactory in South China # 100% responsible for quality
