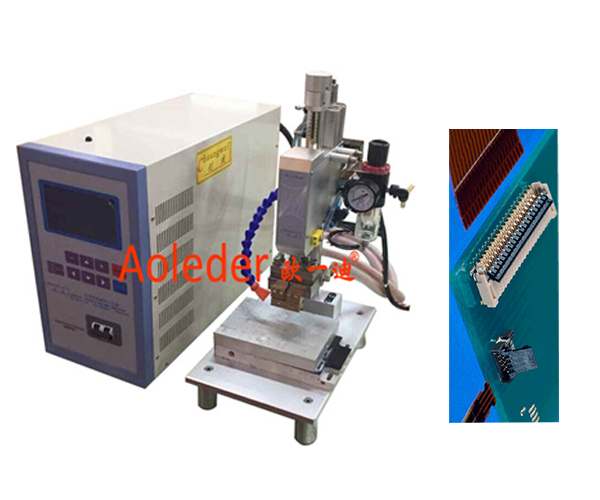

Terminal Hot Bar Soldering System,Soldering Device,CWPDY
Product description: Terminal Hot Bar Soldering System,Soldering Device,CWPDY
Terminal Hot Bar Soldering System,Soldering Device,CWPDYFeature: 1.Closed Loop PID temperature control with visible LED display 2.LCD display programmable pressure switch for precise force control 3.Each heating cycle is triggered by a real time pressure sensor 4.Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined 5.Parts registration is adjusted by micrometer and secured by vacuum lock 6.Could adjust pre-heating and reflow soldering temperature and soldering time
Terminal Hot Bar Soldering System,Soldering Device,CWPDYSpecification: Working Area(mm): 200*260 Depression(pa): 0.45~0.70 Controller size(mm): 180*290*460 Weld head: 170*350*400 Input voltage(V): 380 Temperature setting(℃): 50~600 Temperature precision℃): ±2 Bonding time(s): 1~99 Bonding force(pa): 0.1~0.6: Precision(pa): 0.05
Our Service: # 1 day delivery # 24 hours fast response # Largest manufactory in South China # 100% responsible for quality
