  • PCB  Robotic Soldering Equipment,CWDH-321

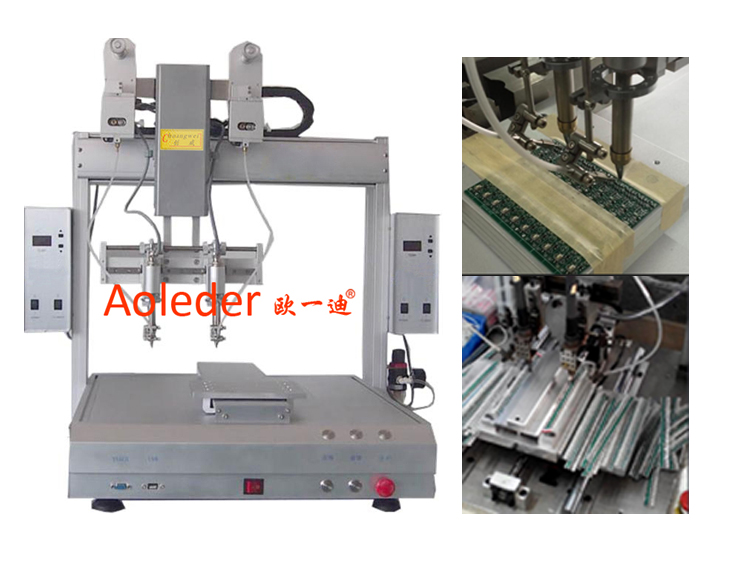

PCB  Robotic Soldering Equipment,CWDH-321

PCB Robotic Soldering Equipment,CWDH-321

  • Product description: PCB Robotic Soldering Equipment,CWDH-321
  • INQUIRY
PCB  Robotic Soldering Equipment,CWDH-321 Feature:
1.Heating rate could be adjustable for different products
2.Long life time thermode made of titanium alloy, ensure even temperature, fast raising
3.Thermode designed to be horizontal adjustment, ensure even component compression
4.Numerical control temperature, clear and precise
5.Has digital manometes, preset pressure range
6.Controlled by precise PID, phasc-angle driving
7.Less vibration,less noise,voltage does not fluctuate

8.Welding head made of molybdenum alloys, good heat transfer coefficient, abrasion - resistant


PCB  Robotic Soldering Equipment,CWDH-321 Specification:

Size:
835mmX600mmX880mm
Operating Condition:
10-60℃, 40%-95%
Working size:
380*380*80mm
Welding Pressure:
1-10KG
Power:
AC220V±10% 50HZ,2300W
Temperature setting(raising):
2 Levels
Display Mode:
5" LCD
Depression(Pa):
0.45-0.70Mpa
Heating time:
1-99.9s


PCB  Robotic Soldering Equipment,CWDH-321 Detailed description:
1. multi-axis robot, all using precision stepper motor drive and advanced motion control algorithms, effectively raising
campaign end (tip) of the positioning accuracy and repeatability (automatic homing no cumulative error),
to achieve the 3D space arbitrary solder accurate location
2. Th hi d t b dd di d t The machine adopts embedded industrial computer control, you can select a single point/single/circulation solder job
3. simple and convenient way of programming, you can directly enter coordinates joints can teach reproduce solder
joint position coordinates. Teach programming is simple to operate, without mechanical preparation areas of
expertise hand program so beginners can quickly master the operation essentials. Simple teach pendant can guide
the movement of the end (tip) to reach any spot position in 3D space, the operator is no special technical and
professional requirements, the realization of human editing operations.
4. Various of welding way, support spot welding and drag welding, all parameters is setted up by user,
meet high difficult welding and micro soldering requirements. All soldering parameters could be read and saved
together with welding point coordinates, achieve flexible soldering
5.  Welding set arbitrary angle & direction is available, R axis controlled welding set,could be rotated 360
degrees freely.Setting feeding times, pre-heating time, and welding time according to different pads and parts,
achieve complex soldering with a variety of soldering points
6.  Realizes real-time peripheral devices by 1/0 USB, has error alarm and high speed motion program functions.
Intelligent main control program realizes automation and intelligence
