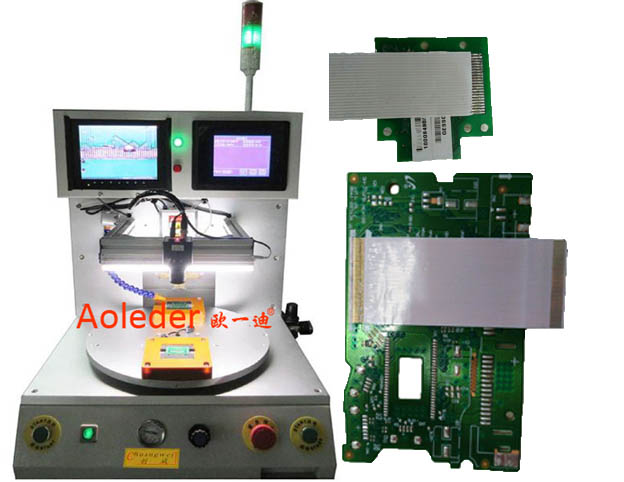

FFC Bonding Machine,Hotbar Soldering for Fpc Ffc,CWPC-3A

Product description: FFC Bonding Machine,Hotbar Soldering for Fpc Ffc,CWPC-3A
INQUIRY

FFC Bonding Machine,Hotbar Soldering for Fpc Ffc,CWPC-3A Feature:
1. According to different products, optional temperature for your choice;
2. Unique material thermode head, ensure the average pressure;
3. Has vacuum function, easier for adjustment and positioning;
4. NC temperature, clear and high precision;
5. With digital pressure gauge, pressure range can be preset;
6. Microcomputer control, high accuracy and stable;
7. Programmable curve Including pre-heating and reflow soldering temperature;
8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding;
9. Precise PID control, phase angle replace pulse drive;
10. Less Libration, less noise, avoiding voltage fluctuate;
11. Rotable dual fixtures with high working efficiency;
12. Touch screen input data, simplify the operation;

13. Real-time display temperature curve and temperature data.

FFC Bonding Machine,Hotbar Soldering for Fpc Ffc,CWPC-3A Technical parameters:

Machine size：	660×660×720mm
Working area：	Max 120*120mm
Machine weight：	95Kg
Working air pressure：	0.6-0.8Mpa
Power supply：	AC220V±10% 50HZ,2200W
Temperature settings：	Two
Working environment：	10~60℃，40%~95%
Welding pressure：	1~20Kg
Temperature settings：	RT~500℃ tolerance ±5℃
Pressing time：	1~99.9s
Welding precision：	pitch 0.2mm
Thermode head size：	Max 60*3mm
Fixture quantity:	2
Alignment mode：	CCD + LCD Monitor
Feeding mode：	Manual
Starting mode：	Press two start button
Heating mode：	heating pulse rise time of 1~2 seconds
Rotation Platform：	Cylinder control tolerance<0.02mm

FFC Bonding Machine,Hotbar Soldering for Fpc Ffc,CWPC-3A Application
For a variety of high density TAB, TCP crimping and FPC, FFC and
PCB solder crimp.
