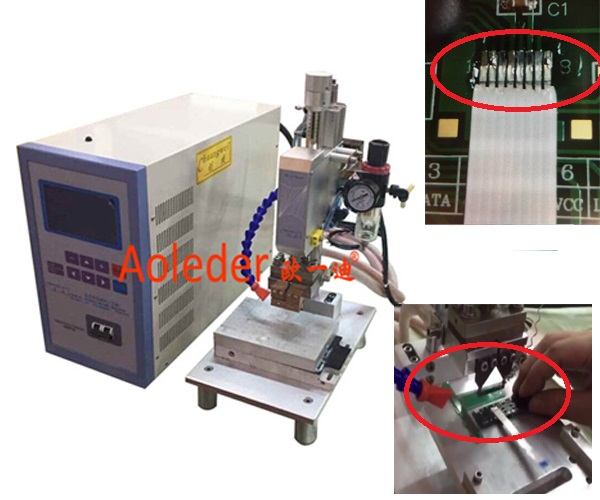

FFC Professional Hotbar Soldering Machine,CWPDY

Product description: FFC Professional Hotbar Soldering Machine,CWPDY
INQUIRY

FFC Professional Hotbar Soldering Machine,CWPDY Feature:
1.Closed Loop PID temperature control with visible LED display;
2.LCD display programmable pressure switch for precise force control;
3.Each heating cycle is triggered by a real time pressure sensor;
4.Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined;
5.Parts registration is adjusted by micrometer and secured by vacuum lock;

6.Could adjust pre-heating and reflow soldering temperature and soldering time.

FFC Professional Hotbar Soldering Machine,CWPDY Specification:

Working Area(mm):	200*260
Depression(pa):	0.45~0.70
Controller size(mm):	180290460
Weld head:	170350400
Input voltage(V):	380
Temperature setting(℃):	50~600
Temperature precision℃):	±2
Bonding time(s):	1~99
Bonding force(pa):	0.1~0.6:
Precision(pa):	0.05
