  • FPC Hot-bar Soldering Machine,CWPP-1A

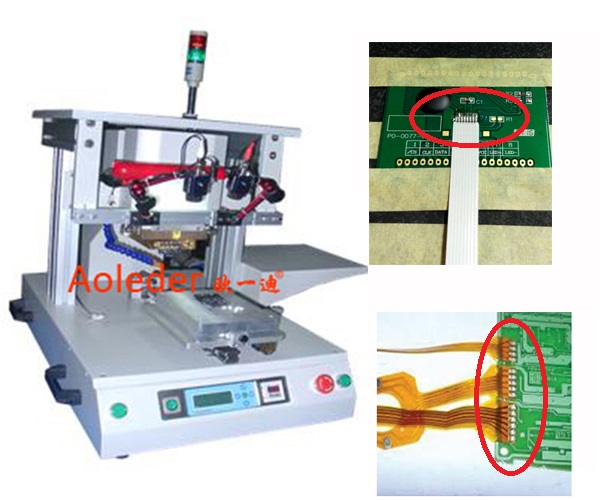

FPC Hot-bar Soldering Machine,CWPP-1A

FPC Hot-bar Soldering Machine,CWPP-1A

  • Product description: FPC Hot-bar Soldering Machine,CWPP-1A
  • INQUIRY
FPC Hot-bar Soldering Machine,CWPP-1A Feature:
1.Unique pulse heat technology provides fastest soldering head heating
2.Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3.Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing
accurate temperature feedback control
4.Closed Loop PID temperature control with clearly visible LED display
5.Soldering time can be programmable and is triggered by temperature
6.Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined
7.Programmable pressure switch with LCD display for precise force control
8.CCD camera system with magnification lens can be retrofitted for fine-pitch positioning

FPC Hot-bar Soldering Machine,CWPP-1A Specification:

Size:
500mm X 750mm X 640mm
Work Air Pressure:
200mm X 260mm
Air pressing:
0.45~0.70Mpa
Weight:
90Kg


Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
