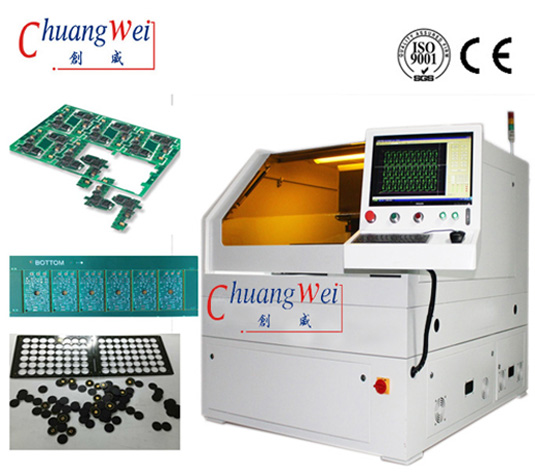

PCB / FPC Depanelizer Machine,Laser Cut PCB/FPC,CWVC-5S

Product description: PCB Depanel Equipment,PCB / FPC Depanelizer Machine,Laser Cut PCB/FPC,CWVC-5S
INQUIRY

PCB Depanel Equipment,PCB / FPC Depanelizer Machine,Laser Cut PCB/FPC,CWVC-5S Description:

Neat and smooth edge, no burr or overflow

Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

Laser wavelength: 355nm

Rated power: 10W/12W/15W/18W@30KHz

Galvanometer working field Per One Process: 40 × 40mm

Power consumption for the hole machine: 2KW

PCB / FPC Depanelizer Machine Features:

More quick and easy, shorten the delivery time;

High quality ,no distortion,surface clean& uniformity;

Gathering the CNC tech,laser tech,software tech…High accuracy,High speed;

Laser Cut PCB/FPC,CWVC-5S Application

FPC and some relative materials;

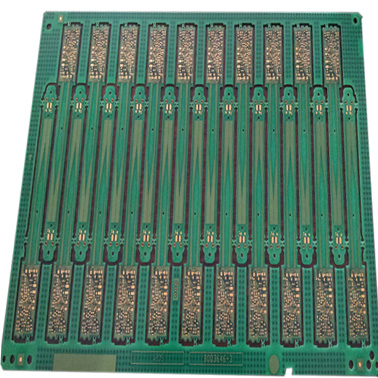

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;

PCB Depanel Equipment Specification:

Laser	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength	355nm
Laser Power	10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor	±2μm
Repetition Precision of Worktable of Linear Motor	±1μm
Effective Working Field	460mmX460mm(Customizable)
Laser Scanning Speed	2500mm/s (max)
Galvanometer Working Field Per One Process	40mmх40mm
