1. Two-slide PCB Separator
2. Low stress
3. Sharp cutting edge
4. Manul loading /unloading
5. High speed cutting by 4 axes control
6. Easy teaching with image processing

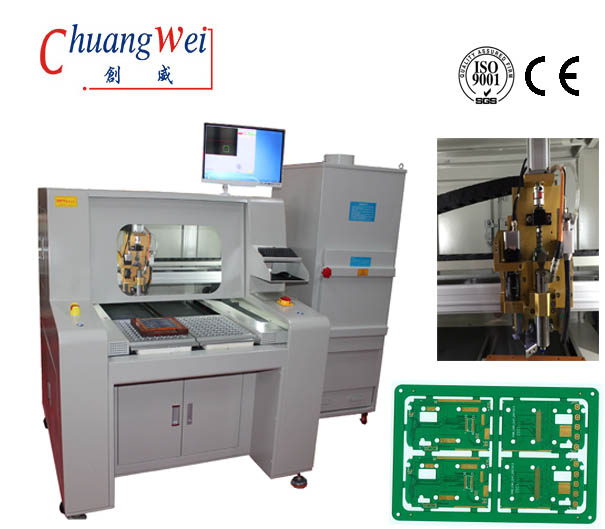

DIY PCB Cutter,PCB Cutting Machine,CNC Machine,Specification:
Model
CW-F04
Standard working area
320*320mm(Standard)
Power
220V, 4.2KW
Manipulator Repeatability
±0.02mm
Resolution
±0.01mm
Board Positioning
Dual workstation with nest fixture or pin fixture
Panel Location
Located by tooling holes or edges of PCB
Loading
Manual
Unloading
Manual
Panel Size
320*320mm(standard)
Panel Thickness
0.5-3.5mm
Spindle motor
0.5kW Morning Star Spindle
Dust filtration system
3KW Vacuum Cleaner
Vision system
High resolution CCD video camera
Programming
Vision assisted point to point manual teaching
Editing Function
Dry run vision assisted / test run mode
Machine weight
650kgs
Machine dimension
1350*1250*1450cm
Description:
2-way Sliding Exchanger
This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.
Route Duplication
The user only needs to set two referent points to duplicate a same route in saving programming time.
Routing Bit Sectioning
The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.
Friendly GUI
Windows 7 system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.
Additional Information:
|
Payment Terms |
T/T, Paypal |
|
Minimum Order |
1 Set |
|
Lead Time / Delivery Time |
10 Day(s) |
|
Sample Available |
NO |
|
Delivery Details |
7-10 days after payment receipt |
|
FOB Port |
Shenzhen, |
|
Loading Info |
FOB Shenzhen via Sea/Air |
|
Packing Info |
plywood case |
|
Target Market(s) |
North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
Low Maintenance PCB Automatic Router Machine High Resolution Ccd Video Camera,CW-F04 Sample Application:
