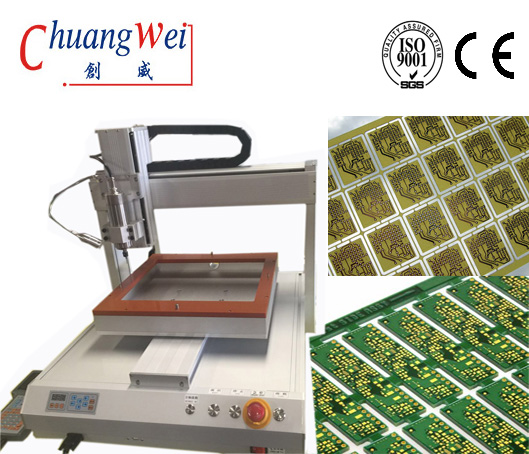

Pcba Routers-Single Table TAB PCB Separator with 0.1mm Routing Precision,CWD-3A

Pcba Routers-Single Table TAB PCB Separator with 0.1mm Routing Precision,CWD-3A

  • Product description: Pcba Routers-Single Table TAB PCB Separator with 0.1mm Routing Precision,CWD-3A
  • INQUIRY

Pcba Routers-Single Table TAB PCB Separator with 0.1mm Routing Precision Feature:

Desktop single bench cutting machine, Speeds of up to 100mm/s, positioning speed 500mm/s;

Cut continuously without interruption during loading and unloading;

High quality shaft system allows the system to quickly ramp, reduce the period of time, Improve productivity, maintaining high precision;

Use high-quality hardware to ensure high rigidity and high performance All screws are protected from dust and dirt from entering to improve the life and performance of the shaft;

Use high-quality hardware to ensure high rigidity and high performance.

Pcba Routers-Single Table TAB PCB Separator with 0.1mm Routing Precision,CWD-3A Specificaiton:

Motor Drive System

Servo/Stepper Motor

Spindle Speed

50000r/s

Cutting Performance

500mm/s

Drive System Repeat ability

±0.02mm

Cutting Speed

Max 100mm/s(Depends on PCB Material and Cutting Quality)

Resolution

±0.01mm

Configuration

X Y Z 3 Axis

Repeat Ability

<0.1mm

PCB Positioning

Fixture

Load and Unload Way

Manually

PCB thickness

0.4mm-4mm

Working Area

320*320mm(Could be Customized made)

Spindle Motor Speed

50000r/m

Spindle Motor Power

0.5KW

Spindle Motor Cooling

Air-cooled

Machine Dimension

650*550*615mm

Weight

73KG

Security Settings

Emergency Stop Switch

Vacuum Cleaner

Phase

1

Voltage

220V

Output

2.2KW

HZ

50

Current

9.7A

Airfce

263M³/h

Barrel

80L

Application for Pcba Routers-Single Table TAB PCB Separator with 0.1mm Routing Precision,CWD-3A

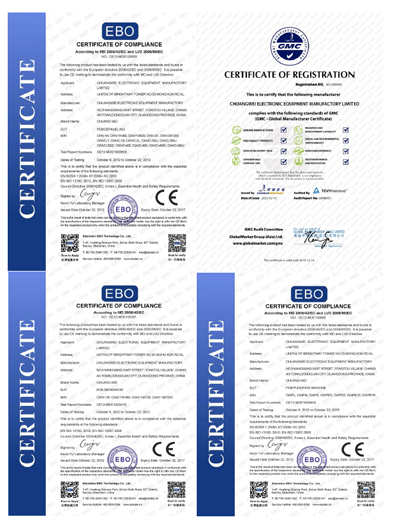

Application for Pcba Routers-Single Table TAB PCB Separator with 0.1mm Routing Precision with CE
