  • Economic Semi Automatic Router Machine,CW-F01-S

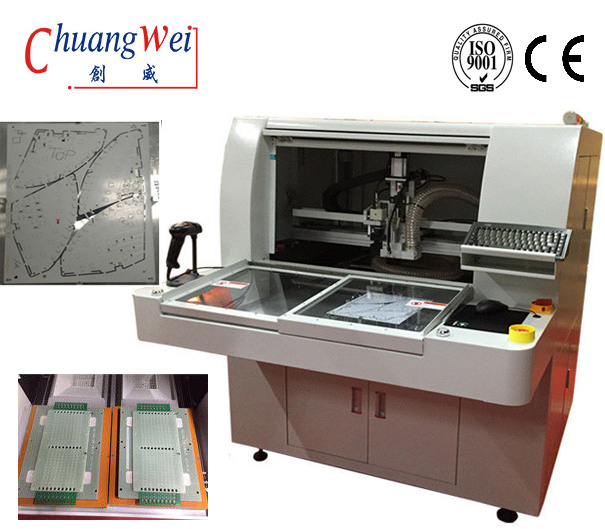

Economic Semi Automatic Router Machine,CW-F01-S

Economic Semi Automatic Router Machine,CW-F01-S

  • Product description: Economic Semi Automatic Router Machine,CW-F01-S
  • INQUIRY

Pcb Cutting Machine,PCB Separator,LED Trip Separator,CNC Router PCB Depanelization Detailed Product Description:

Warranty: 12 Month Free Of Charge Temp• PCB Thickness: 0.5-3.0mm
• Cutting Area: 450*350mm • Router Bit Diameter: 0.8 ~ 2.0 Mm
Bit Change: Manual Name: PCB Router Separator

Economic Semi Automatic Router Machine,CW-F01-S Specification:

Model

CW-F01-S

Standard working area

320*320mm

Power

220V, 4.2KW

Manipulator Repeat ability

±0.02mm

Resolution

±0.01mm

Board Positioning

Dual workstation with nest fixture or pin fixture

Panel Location

Located by tooling holes or edges of PCB

Loading

Manual

Unloading

Manual

Panel Size

320*320mm(standard)

Panel Thickness

0.5-3.5mm

Spindle motor

KAVO Spindle

Tool Change

Manual

Dust filtration system

3KW Vacuum Cleaner

Vision system

High resolution CCD video camera

Programming

Vision assisted point to point manual teaching

Editing Function

Dry run vision assisted / test run mode

Machine weight

500kgs

Machine dimension

113*140*108cm

Economic Semi Automatic Router Machine,CW-F01-S Features:

1. Manual loading/unloading processing

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to    reaches the utmost output value.

3. Friendly touch panel with 10X CCD camera to minimize the time of programming

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy

5. Auto router bit check to prevent the bit break incomplete cutting.

Economic Semi Automatic Router Machine,CW-F01-S Positioning Repeatability:

It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.

Economic Semi Automatic Router Machine,CW-F01-S


Economic Semi Automatic Router Machine,CW-F01-S with CE:
