Machine and Artificial / Ultrasonic Cleaning Fixture Comparison：
Condenser cleaning
Manual or ultrasonic cleaning
Comparing results
Automatic cleaning,100% safe
Charged cleaning or artificial iron brush cleaning+solution,poor safety
≥
Batch cleaning,fast and efficient
Cleaning time is long,low efficiency
≥
One-touch operation,no need to special cleaning staff
Iron brush fixture,dirty,tired,need special cleaning personal
≥
Up and down,around the full range of cleaning,cleaning thoroughly,high cleanliness
Condenser on the dead ends,the surface dirty cleaning difficult
≥
Solution cycle repeated repeated use
High Cleaning costs
≥
Spay cleaning and rinsing,governance well intact
Iron brush cleaning will be raised,the surface off the phenomenon,the impact of follow-up product quality
≥
Cleaning +rinse+dry,after cleaning the surface without solvent
No rinse,after cleaning solvent residue,after the use of heat when the smell out after the smell out
≥

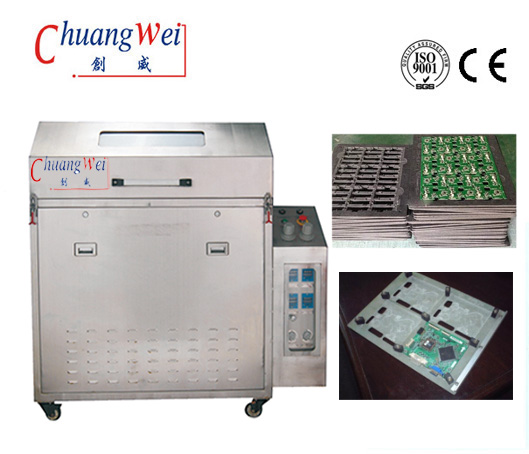

Specifications of CW-5100 Fixture Cleaning Machine with Spray Rotary Cleaning:
• Cleaning basket size ：Φ1000mm× 200mm(H) , Maximum cleaning height ：450mm, Special size should be customized
• Cleaning fluid capacity ：80L（ maximum ）
• Rinse fluid capacity ：80L（ maximum ）
• Cleaning method ： Spray Rotary Cleaning
• Dry way ： Compressed air dry
• Recommended cleaning time ：3-15mins
• Recommended cleaning and drying time ：2-3mins
• Recommended rinse time ：1-2mins
• Recommended drying time ：3-6mins
• Cleaning filter ： Using 3-level filtration
• Class 1 filter ：2mm（ Filter debris ）
• Level 2 filter ：100um（ Primary filter flux, iron and other lumps ）
• Level 3 filter ：20um（ Filter flux, rosin and so on ）
• Air supply ：0.5~ 0.7Mpa
• Air consumption ：800-1000L/min
• Outlet size ：Φ130mm(W)×60mm(H)
• dimension ：1550mm(L) ×1780mm(W) ×1730mm(H)
CW-5100 Advantages of Cleaning the Rule:
1. One-touch operation,no need to special cleaning staff
2. Batch cleaing,cleaning fast and efficient
3. No electricity ,all pneumatic cleaning,100% safe
4. Up and down, around the full range of cleaning,cleaning thoroughly,high cleanliness
5. Suitable for a variety of cleaing fluid
6. Automatic cleaning,saving labor
7. The solution is repeated several times
8. Spray cleaning,governance with a condenser intact
Sample for Fixture Cleaning :
