Specification:
|
Model |
CW-F04 |
|
Standard working area |
320*320mm |
|
Power |
220V, 4.2KW |
|
Manipulator Repeatability |
±0.02mm |
|
Resolution |
±0.01mm |
|
Board Positioning |
Dual workstation with nest fixture or pin fixture |
|
Panel Location |
Located by tooling holes or edges of PCB |
|
Loading |
Manual |
|
Unloading |
Manual |
|
Panel Size |
320*320mm(standard) |
|
Panel Thickness |
0.5-3.5mm |
|
Spindle motor |
KAVO Spindle |
|
Tool Change |
Manual |
|
Dust filtration system |
3KW Vacuum Cleaner |
|
Vision system |
High resolution CCD video camera |
|
Programming |
Vision assisted point to point manual teaching |
|
Editing Function |
Dry run vision assisted / test run mode |
|
Machine weight |
500kgs |
|
Machine dimension |
113*140*108cm |

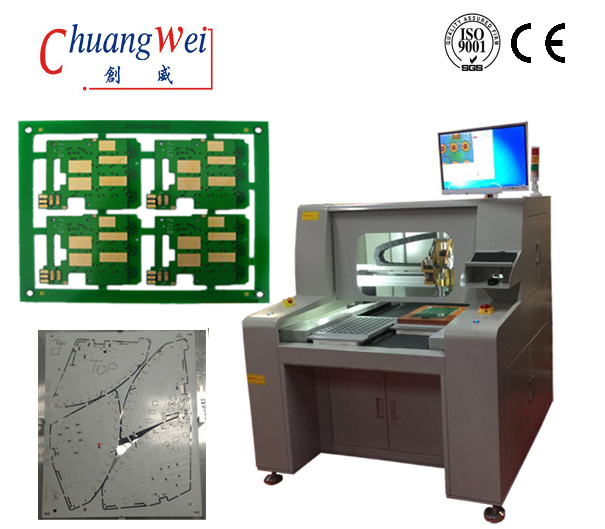

Industrial Robotics & Automatic PCB Routing Cutting Equipment Detailed Product Description:
|
PCB Size: |
450*350( Any Size Customize ) |
Spindle: |
KAVO |
|
Power: |
220/110V |
Vacuum Cleaner: |
3.5KW |
|
Working Table: |
2 |
Name: |
PCB Router |
2.Cooperating with the monitor, the diameter of a milling cutter, a circle and square frame can be set
Depanel-PCB Separator,Pcb Cutting, with CE Certification:
Cutter-Aluminum PCB Separator,Cuttiing with Router of Our advantage:
1. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
2. We can also customize the products to fulfill different requirements.
3. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for
Electronic Assembly Industry.
4. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time
is just 3 days.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6. Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your
reliable partner and will return to you with good products and good support.
7. Professional: We have been in this business for more than 10 years. We have a strong professional
team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes
10. Price: we always offer competitive prices and help our customers to cost down.
11. Quality: we do 100% inspection before the shipment.
Why us
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be easy reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
