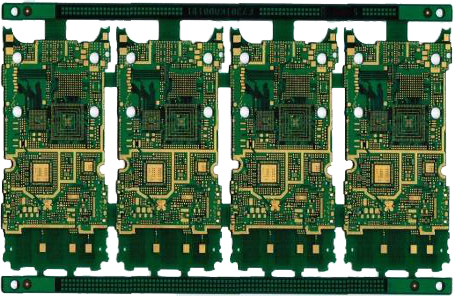

Video of PCB Cutter with CNC PCBa Router Equipment,CW-F04 Samples:
Top Quality PCB Depaneling Machine & PCB Separator Supplier,CW-F04
Specification:
|
Model |
CW-F04 |
|
Standard working area |
320*320mm |
|
Power |
220V, 4.2KW |
|
Manipulator Repeatability |
±0.02mm |
|
Resolution |
±0.01mm |
|
Board Positioning |
Dual workstation with nest fixture or pin fixture |
|
Panel Location |
Located by tooling holes or edges of PCB |
|
Loading |
Manual |
|
Unloading |
Manual |
|
Panel Size |
320*320mm(standard) |
|
Panel Thickness |
0.5-3.5mm |
|
Spindle motor |
KAVO Spindle |
|
Tool Change |
Manual |
|
Dust filtration system |
3KW Vacuum Cleaner |
|
Vision system |
High resolution CCD video camera |
|
Programming |
Vision assisted point to point manual teaching |
|
Editing Function |
Dry run vision assisted / test run mode |
|
Machine weight |
500kgs |
|
Machine dimension |
113*140*108cm |

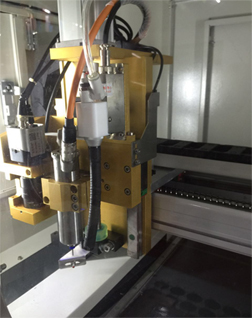

Depanelization - PCB Cutter Machine Detailed Product Description:
|
PCB Size: |
450*350( Any Size Customize ) |
Spindle: |
KAVO |
|
Power: |
220/110V |
Vacuum Cleaner: |
3.5KW |
|
Working Table: |
2 |
Name: |
PCB Router |
Cut-PCB Separator,Pcb Cutting,PCB Depanelize with CE Certification:

Why us
1.Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2.Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
3.Effective customer service. pcb router machine
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be easy reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories. b router machine
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Our mission:
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:
PCB industry to become the world's leading solution providers PCB separator. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend.
Additional Information:
Payment Terms
T/T, Paypal
Minimum Order
1 Set
Lead Time / Delivery Time
10 Day(s)
Sample Available
NO
Delivery Details
7-10 days after payment receipt
FOB Port
Shenzhen,
Loading Info
FOB Shenzhen via Sea/Air
Packing Info
plywood case
Target Market(s)
North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
