  • Laser Depanel Machine for PCB Separator,SMTfly-LJ330

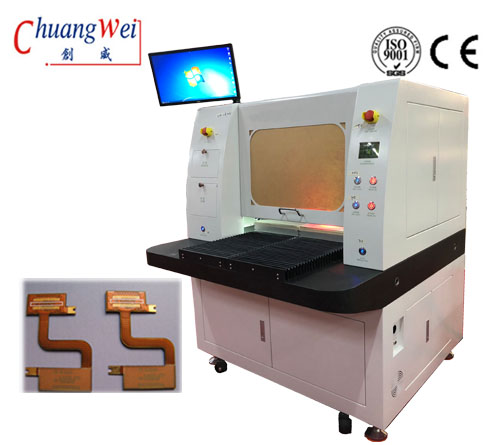

Laser Depanel Machine for PCB Separator,SMTfly-LJ330

Laser Depanel Machine for PCB Separator,SMTfly-LJ330

  • Product description: Laser Depanel Machine for PCB Separator,SMTfly-LJ330
  • INQUIRY

Laser Depanel Machine for PCB Separator,SMTfly-LJ330 Features:

High precision and high intergrated frame structure to ensure the stability of machine are in good condition.

Support infrared preheating system to make sure the excellent soldering quality.

High precision temperature feedback system to make sure working temperature within +/- 5 ℃.

Dual vision programming system facilitates the program editing process, save the profile editing time.

The bird's eye vision system monitors the whole soldering process.

Multi-light system to cover all kinds of PCB soldering.

Laser spot can be automatically adjusted to cover all kinds of pad/parts.

Marker calibration system which can automatically correct the tolerance caused by fixture.

Smart wire feeding system with rotating platform to realize full range of soldering , the rotation angel can be control from 0 to 180 degree.

Supporting platform can be inclined to suit for produces which require to solder from different angles.

Solder wire smart adjustment function to reduce the manual operation time.

Support N2 soldering to reduce the oxidation of the solder point.

Laser reflection protection platform with safety sensor , more safe for operators.

Support inline soldering and can be interactived with MES system.

Multi-language supported.

Laser Depanel Machine for PCB Separator,SMTfly-LJ330 Technical Specifications:

Laser maximum output power

20W~200W

Laser Source Type

Diode Laser

Laser wavelength

860~1180nm

Laser adjustable focus size

0.3mm~2mm

Solder wire diameter range

0.2mm~1.2mm

Solder wire angle range

0~180°

Minimum welding distance

0.2mm

Temperature control accuracy

±5°C

Repeat positioning accuracy (XYZ)

±0.01mm

Maximum speed (XYZ)

700mm/s

Machine power

600w

Machine Dimensions

1520*1044*1660mm

Machine working area(XYZ)

400*400*100mm

Total machine weight

800kg

Power Supply Range

AC185~265V/50Hz

Working environment

0~40°C (without freezing) 20%~90% (without condensation)

Supported languages

Chinese/English

Supported programming methods

Visual programming

Angle adjustment programmable carrier

Optional

Preheating system

Optional
